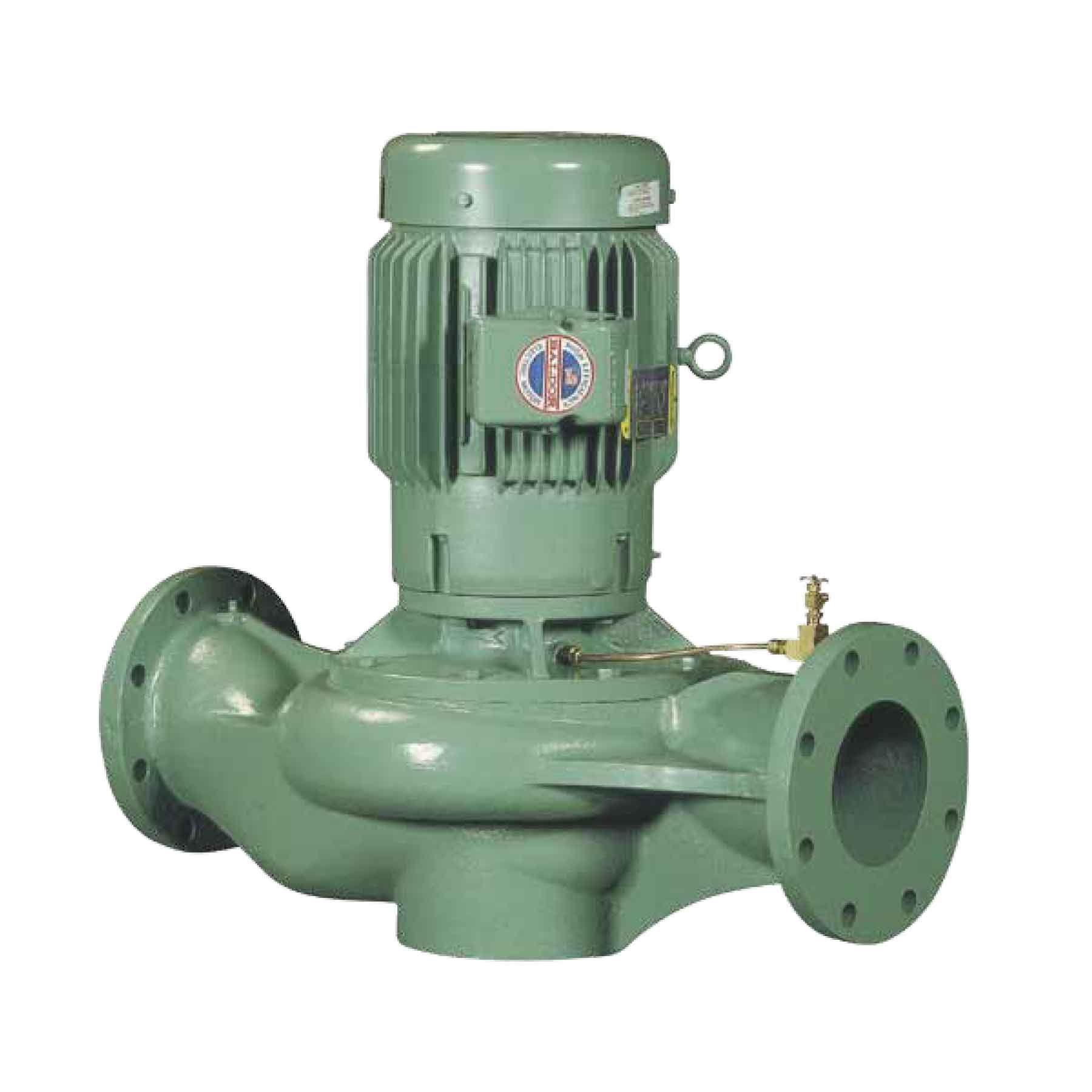

Taco KV2006 Vertical In-Line Commercial Pump
Taco KV2006 Vertical In-Line Commercial Pump
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Specification Parameter | Official Factory Value |
|---|---|
| Connection Size | 2" Flanged Connection Layout (Flanges Included) |
| Motor Horsepower Options | 1.0 HP or 1.5 HP Commercial Class Configurations |
| Motor Speed (RPM) | 1750 RPM Continuous Duty (60 Hz Operating Frequency) |
| Electrical Power Configurations | 3-Phase Operational Profile (208-230/460V Capacity) |
| Motor Enclosure Rating | ODP (Open Drip-Proof Standard, JM Frame Size) |
| Max Working Pressure Limit | 175 PSI Standard Pressure Limit (Optional up to 300 PSI) |
| Max Fluid Processing Temp | 250°F (120°C) Continuous Operational Limit |
| Pump Base Casting | Cast Iron Construction with Bronze-Fitted Trim Components |
The Taco KV2006 is an elite, industrial-grade vertical in-line centrifugal pump precision-engineered for heavy commercial HVAC, hydronic heating, and chilled water distribution loops. Utilizing an intelligent, space-saving vertical footprint, this high-efficiency circulator fits straight into standard piping lines—completely eliminating the need for concrete inertia bases or specialized foundation isolation pads.
Advanced Close-Coupled Architecture
The KV2006 features Taco's signature close-coupled configuration, ensuring dead-on motor-to-pump shaft alignment to significantly eliminate vibration, increase structural bearing life, and drastically extend the lifespan of internal mechanical seals. Backed by an axially balanced hydraulic layout, the pump minimizes net positive suction head (NPSH) parameters while delivering steady, whisper-quiet flow delivery through aggressive operations.
Heavy Facility Maintenance Features
- Time-Saving Back Pull-Out Design: Perform full internal component inspections, seal swaps, or impeller maintenance cycles entirely from the back without unbolting or disconnecting the primary pump casing from your mechanical room piping.
- Integrated Flushed Seal Pathway: Features a built-in internal recirculating line that constantly washes the ceramic/EPT seal faces, sweeping away particulate debris to stop pre-mature pitting.
- Rugged Bronze-Fitted Construction: Built with an ASTM A48 cast iron casing paired with a premium, high-efficiency dynamically balanced bronze impeller to handle high-flow requirements effortlessly.
Note: This is a built-to-order industrial pump. Please specify your system's required submittal flow rate (GPM), total dynamic head feet, and custom impeller trimming metrics when finalizing procurement. Click here to speak with our engineering desk for specific curve verification.
