Taco TB Brazed Heat Exchangers Series
Taco TB Brazed Heat Exchangers Series
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Threshold Data |
|---|---|
| Plate Material Base | 316L Marine-Grade Stainless Steel |
| Brazing Material Alloy | 99.9% Pure Copper |
| Maximum Design Working Pressure | 450 PSI (31 Bar) |
| Design Temperature Range | -320°F to 437°F (-195°C to 225°C) |
| Standard Connection Size | 1" Male NPT Threaded Hubs (Typical) |
| Fluid Loop Code Approval | ASME Section VIII / UL Listed / CE Certified |
Couldn't load pickup availability

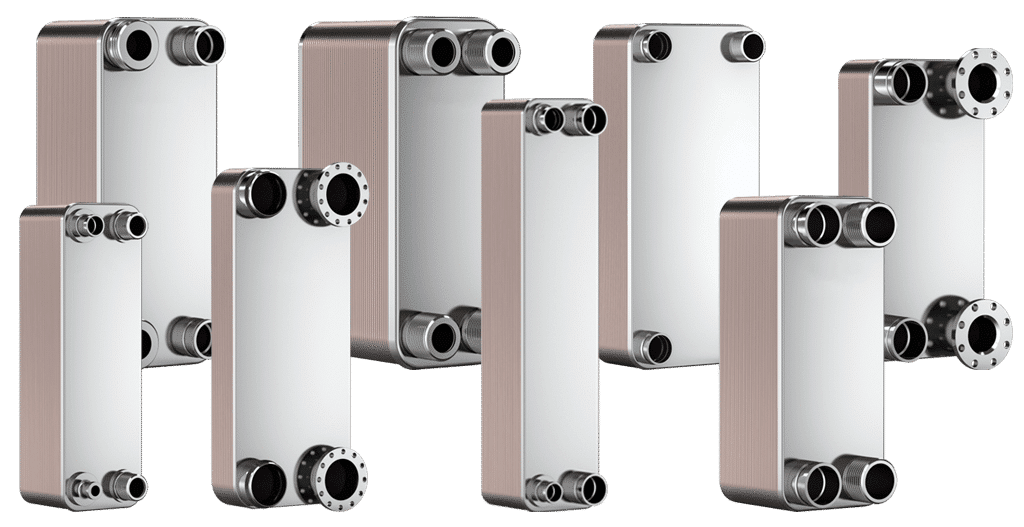

The Taco Comfort Solutions TB Series Brazed Plate Heat Exchangers deliver maximum thermal transfer efficiency within an exceptionally compact footprint. Engineered for demanding industrial, institutional, and commercial hydronic applications, these units utilize precision-formed chevron-pattern stainless steel plates that are vacuum-brazed together with pure copper. This creates a highly turbulent counter-current fluid path, maximizing BTU transfer rates while radically reducing fouling, scale buildup, and systemic pressure drops.
Key Mechanical & Thermal Advantages:
- High-Turbulence Chevron Geometry: The internal corrugated plate angles force fluid into intense structural micro-mixing pathways, generating high heat transfer coefficients even at lower fluid velocities.
- Rugged Copper-Brazed Matrix: Vacuum-brazed with 99.9% pure copper to eliminate the need for mechanical gaskets or external structural frames, creating a self-contained pressure vessel capable of withstanding severe thermal shock and high-PSI spikes.
- Versatile System Separation: Ideal for decoupling distinct plumbing loops, including domestic hot water isolation, radiant floor snow-melt glycol loops, district geothermal zoning, and solar thermal processing systems.
Installation Notes: Features heavy-duty threaded male NPT structural connection ports securely brazed directly to the thick outer cover plates. Designed for space-saving vertical mounting configurations to optimize cramped mechanical room footprints.
