TacoSetter Bypass 3/4" Visual Calibration Valve (2-8 GPM)
TacoSetter Bypass 3/4" Visual Calibration Valve (2-8 GPM)
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Threshold Data |
|---|---|
| Manufacturer Part Number | 100.2334.322 (TacoSetter Bypass 25) |
| Connection Interface | 3/4" Female NPT (Threaded Entry/Exit) |
| Flow Measurement Window | 2.0 to 8.0 GPM (Gallons Per Minute) |
| Valve Body Material | Dezincification-Resistant (DZR) Brass |
| Maximum Pressure Threshold | 145 PSI (10 Bar) |
| Maximum Fluid Working Temp | 212°F (100°C) Continuous |
| Valve Matrix Capacity | Cv 2.6 Rating |
| Approved Media Profile | Water, Hydronic Glycol Mixes up to 50% |
Couldn't load pickup availability

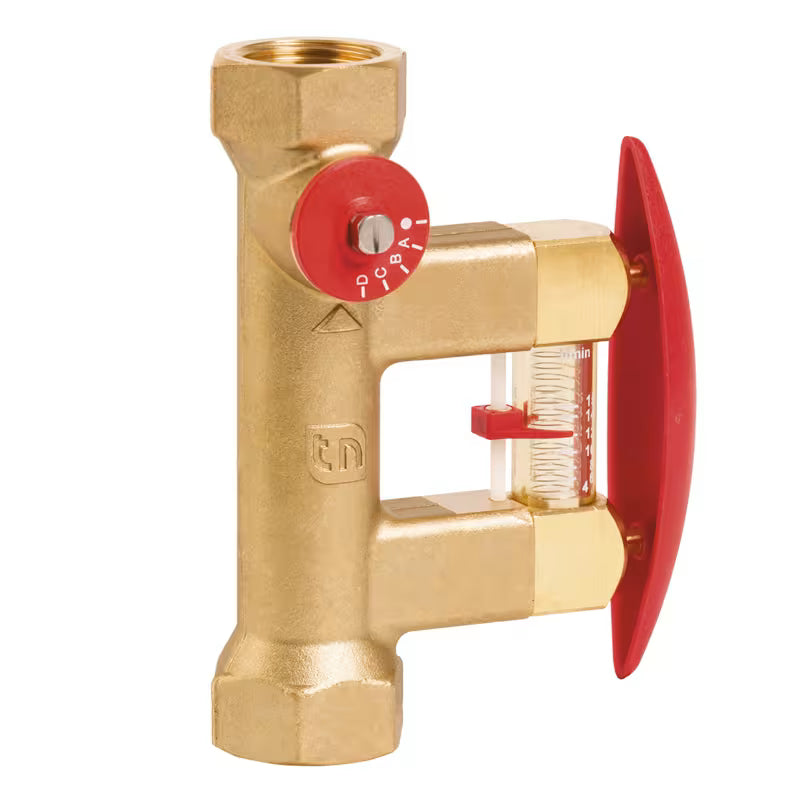

The Taco Comfort Solutions TacoSetter Bypass (2-8 GPM) is the premium mechanical standard for precision hydronic loop balancing. Fabricated from solid, dezincification-resistant brass with a 3/4" female NPT interface, this inline calibration valve features an integrated bypass flow meter assembly. By compressing the manual spring-loaded bypass lever, a localized sample stream is diverted through an isolated glass sight chamber, providing instant, highly accurate visual flow-velocity readings without introducing structural system pressure drops during normal operation.
Key Mechanical & Field Advantages:
- Direct Visual Flow Reading: Eliminates the need for expensive external pressure-differential computers, calculation charts, or diagnostic probes. The internal red indicator float yields real-time GPM tracking inside the scale window.
- Isolate-Protected Measuring Element: Because the visual sight cylinder is contained within a normally closed bypass channel, it remains clean and free of system black iron oxide sediment or scaling during normal run times.
- Precision Multiturn Adjustment: Equipped with a finely calibrated, internal sloped plug mechanism that allows microscopic balancing adjustments across its entire 2.0 to 8.0 GPM operational field.
Application Dynamics: Perfect for solar thermal loop configuration, radiant floor manifolds, cooling headers, and institutional domestic hot water recirculation lines. Rated for continuous duty in water and glycol media mixtures.
