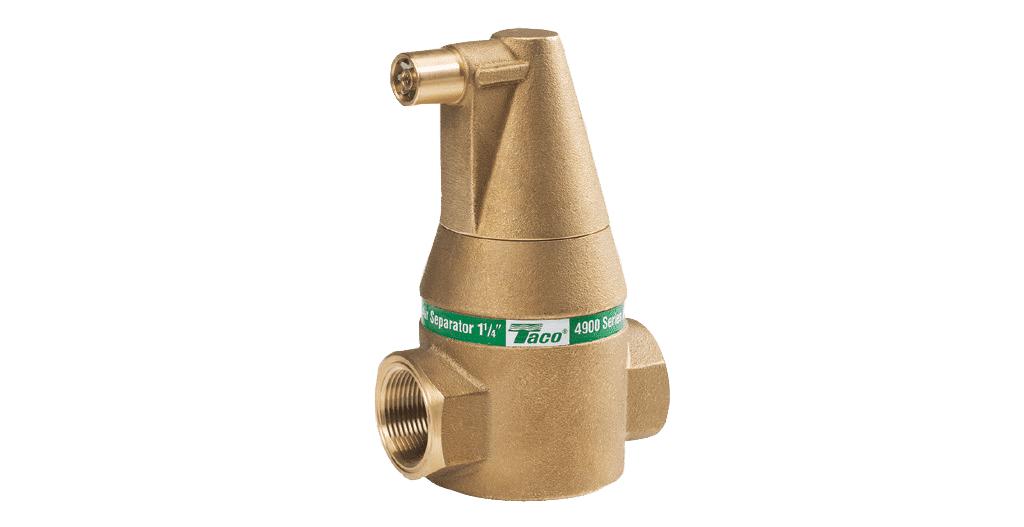

Taco 4900 Series Brass Microbubble Air Separator
Taco 4900 Series Brass Microbubble Air Separator
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Housing Body Material | Solid Forged Brass Casing |
| Internal Coalescence Media | 304 Stainless Steel PALL Ring Basket |
| Maximum Operating Pressure | 150 PSI (1,034 kPa) |
| Maximum Fluid Temperature | 240°F (115°C) |
| Minimum Fluid Temperature | 25°F (-4°C) |
| Acceptable Fluids / Media | Water / Closed Water-Glycol Solutions (up to 50%) |
| Flow Configuration Profile | Bidirectional Configuration (Horizontal Run Line Only) |
| Expansion Tapping Interface | 1/2" NPT Female Bottom Connection Port |
| Maximum Fluid Velocity | 5.0 feet per second |
Couldn't load pickup availability
The Taco Comfort Solutions® 4900 Series Brass Microbubble Air Separator represents the industry standard for complete, high-efficiency gas elimination in closed-loop hydronic heating and chilled water systems. This premium inline air eliminator features a heavy-duty, corrosion-resistant brass body housing Taco's patented stainless steel PALL ring basket assembly. By utilizing advanced coalescence dynamics, the flowing fluid splits across the massive surface area of the PALL rings, forcing microscopic bubbles as tiny as 15 microns to effortlessly cling together, grow, and float cleanly out of solution.
Engineered with an innovative deep conical venting chamber, the 4900 series isolates the automatic float mechanism and venting valve well above the normal fluid level. This specialized layout shields the internal gearing from floating sludge, rust scale, and system debris, drastically reducing fouling or failure risks. With true bidirectional flow capabilities, an integrated 1/2" bottom tapping for streamlined expansion tank mounting, and absolutely zero straight run pipe prerequisites, this separator saves critical installation footprints in cramped mechanical spaces.
Key Performance Advantages:
- Microbubble Coalescence: Removes micro-bubbles from 15 microns and up—three times more efficient than standard separators.
- Conical Dirt Shielding: Protects the upper vent path against mechanical sediment locking, avoiding premature pinhole leaks.
- Zero System Restrictions: Can be piped directly next to elbows, circulators, or tees without affecting performance.
