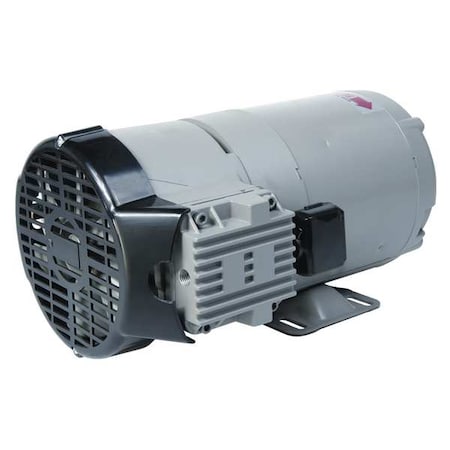

Thomas 270080 - Piston Air Compressor, 3/4 HP, 115/230 V, 1 Ph
Thomas 270080 - Piston Air Compressor, 3/4 HP, 115/230 V, 1 Ph
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Thomas 270080 is an oil-lubricated, twin-cylinder piston air compressor with an articulated-piston design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 3/4 hp output, in a tankless configuration. It provides a free-air delivery ranging from 2.25 CFM at 100 psi up to 2.4 CFM at 0 psi, and a maximum continuous pressure of 175 psi. It is rated at a maximum speed of 1,725 RPM, a full-load current of 10.6/5.3 A, and a measured sound level of 80 dBA. The operating temperature range is 32-104°F. Construction includes a cast iron cylinder, a capacitor-start motor, and stainless steel valves. The motor is totally enclosed. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 15.5 x 12 x 7 in (L x W x H). It ships without a power cord. Country of origin: United States.
