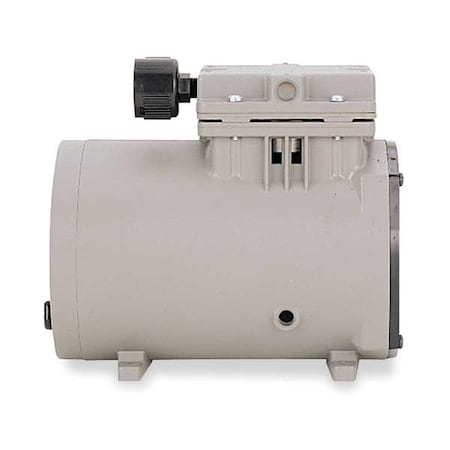

Thomas 617CA22 - Piston Air Compressor/Vacuum Pump,1/8 HP
Thomas 617CA22 - Piston Air Compressor/Vacuum Pump,1/8 HP
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Thomas 617CA22 is an oil-free, single-cylinder piston air compressor and vacuum pump with a WOB-L (wobble) piston design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/8 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.07 CFM at 100 psi up to 0.78 CFM at 0 psi, a maximum continuous pressure of 100 psi, and a maximum vacuum of 25.6 in Hg. It is rated at a maximum speed of 1,540 RPM, a full-load current of 3.1 A, and a measured sound level of 63 dBA (@ 60 psi). The operating temperature range is 50-104°F. Construction includes an aluminum cylinder, a shaded-pole motor (thermally protected, with a high-torque start winding), and corrosion-resistant sandwich valves in stainless steel. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 8 x 5 x 6.8 in (L x W x H). It includes a 6 ft power cord. Country of origin: United States. The manufacturer lists typical applications including aeration, beverage dispensing, business machines, packaging, photographic processing, OEM use (intermittent & continuous duty).
