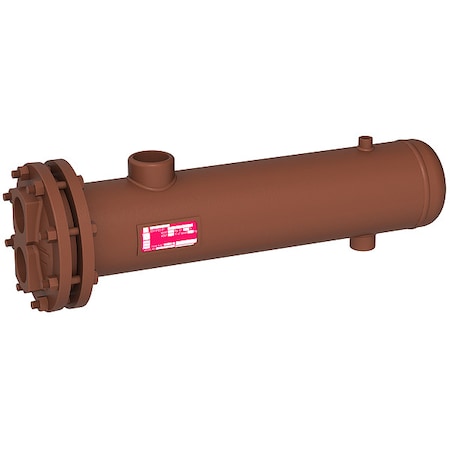

Thrush TS08-036-2XXXX-SSCI-SX-CCC-11-5552 - Steam-Water Heat Exchanger, 478,000 Btu H
Thrush TS08-036-2XXXX-SSCI-SX-CCC-11-5552 - Steam-Water Heat Exchanger, 478,000 Btu H
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
This item is a shell and tube heat exchanger rated for transferring heat between liquid streams in water-to-water systems. It uses a U-tube configuration with copper tubes housed within a carbon steel shell for operation within the specified temperature and pressure limits. The unit includes multiple NPT connections for steam, condensate, tube-side flow, and venting, and is rated for operation within the specified thermal and flow capacities.
Key Features:
- Heat Exchanger Type: Shell and tube design with a U-tube configuration that accommodates thermal expansion.
- Heat Transfer Capacity: Rated for up to 478,000 BtuH in water-to-water applications.
- Pressure Ratings: Shell and tube rated for up to 150 psig.
- Temperature Ratings: Shell rated up to 375°F; tube rated up to 400°F.
- Flow Capacity: Shell flow capacity up to 211 gpm; tube flow capacity up to 49 gpm.
- Construction Materials: Copper tubes with a carbon steel shell, tubesheet, and cast iron head.
- Connections: NPT connections including 3 in steam and tube, 1.5 in condensate, and 3/4 in vent.
- Surface Area: Total heat transfer surface area of 23.5 sq ft.
- Standards: Constructed in accordance with ASME Section VIII Division 1 and National Board registration.
