Type M Rigid Copper Pipe (20 ft. Length)
Type M Rigid Copper Pipe (20 ft. Length)
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Nominal Pipe Size | Actual Outer Diameter (OD) | Nominal Wall Thickness | Approx. Weight Per Foot | Industry Specifications |
|---|---|---|---|---|
| 3/8" | 0.500" | 0.025" | 0.144 lbs | ASTM B88 / NSF 61 |
| 1/2" | 0.625" | 0.028" | 0.203 lbs | ASTM B88 / NSF 61 |
| 3/4" | 0.875" | 0.032" | 0.328 lbs | ASTM B88 / NSF 61 |
| 1" | 1.125" | 0.035" | 0.464 lbs | ASTM B88 / NSF 61 |
| 1-1/4" | 1.375" | 0.042" | 0.681 lbs | ASTM B88 / NSF 61 |
| 1-1/2" | 1.625" | 0.049" | 0.940 lbs | ASTM B88 / NSF 61 |
| 2" | 2.125" | 0.058" | 1.460 lbs | ASTM B88 / NSF 61 |
Couldn't load pickup availability

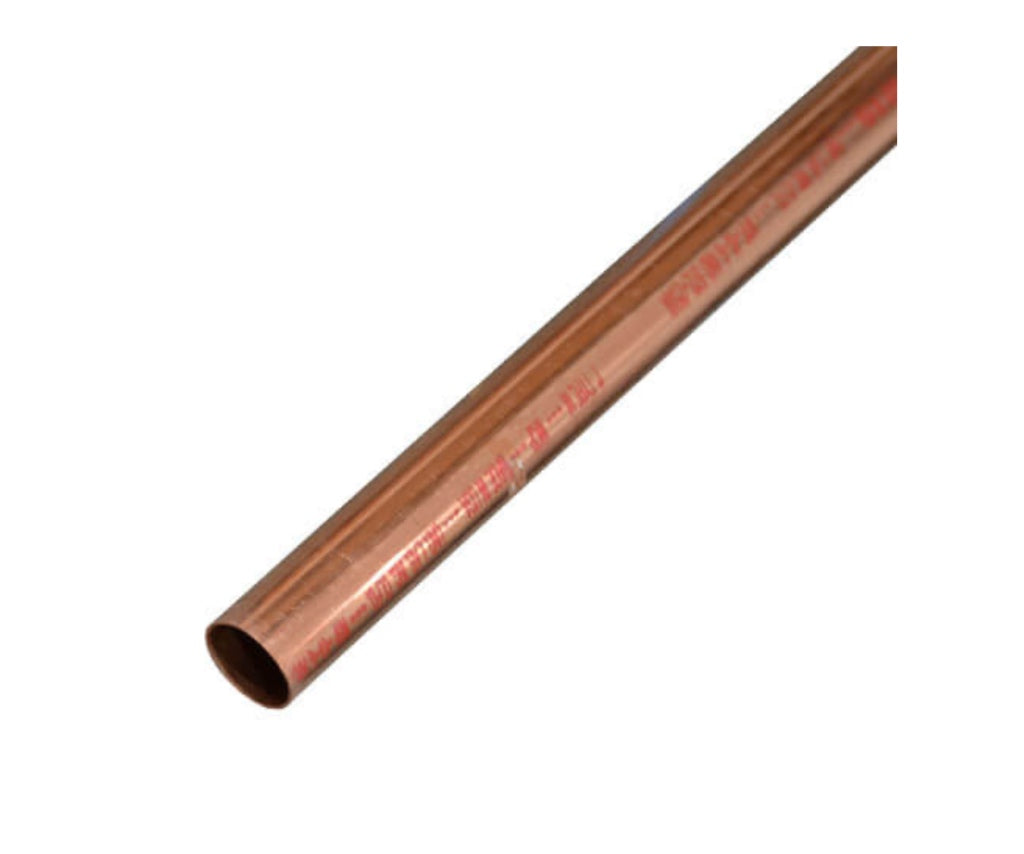

Type M Rigid Copper Pipe (20 ft. Straight Lengths)
Engineered for optimal hydraulic performance and reliability in commercial and residential mechanical systems, our Type M Rigid Copper Pipe provides an ideal balance of strength, lightweight handling, and high flow efficiency. Supplied in 20-foot hard-drawn (rigid) straight lengths, this piping features a mirror-smooth internal bore that maximizes volumetric flow rates while resisting corrosion, pitting, and long-term scaling buildup.
Extruded from high-purity, seamless alloy C12200 deoxidized high-phosphorus (DHP) copper conforming strictly to ASTM B88 benchmarks, this straight pipe delivers the reliable wall uniformity required for standard above-ground potable water lines, hydronic heating loops, and structural distribution mains.
Key System Performance Baselines:
- Application Profile: Primarily optimized for domestic hot/cold potable water lines, chilled water infrastructure, hydronic heating networks, and vacuum service lines.
- Material Purity: Manufactured from ≥ 99.9% pure, lead-free wrot copper compound that is naturally bacteriostatic and highly resilient against thermal degradation.
- Efficient Geometric Profile: Thinner-wall design compared to Type L or K handles internal pressures efficiently while reducing physical shipping weight and material costs.
- Connection Matrix: Engineered for structural integration using standard solder connections, brazing processes, or code-approved press-fit mechanical joints.
- Trade Compliance: Fully certified to ASTM B88 standards and NSF/ANSI Standard 61 requirements for absolute potable water safety.
⚠️ Engineering Disclaimer: Type M copper pipe features a color-coded red identification line and is engineered for moderate-pressure services. Always verify local plumbing and mechanical building codes regarding specific underground or high-pressure application restrictions before final layout.
