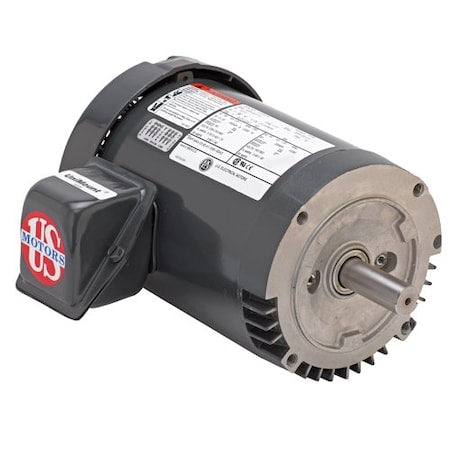

U.S. Motors U1P2DCR - Three-Phase General Purpose Motor, 1 HP, 143 TC Frame, 208-230/460 V AC Voltage, 1755 Nameplate RPM
U.S. Motors U1P2DCR - Three-Phase General Purpose Motor, 1 HP, 143 TC Frame, 208-230/460 V AC Voltage, 1755 Nameplate RPM
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1755, Frame 143TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.1/1.5 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CSA (258501), UL (E47479)
