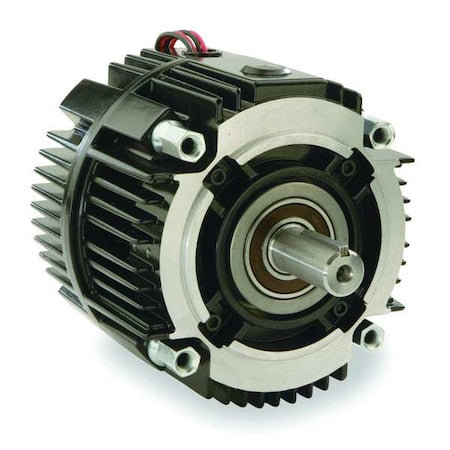

Warner Electric UM180-1020-24 - Clutch/Brake, Torque 30 Ft-Lb, 24 DC
Warner Electric UM180-1020-24 - Clutch/Brake, Torque 30 Ft-Lb, 24 DC
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Clutch/Brake, Coil Voltage 24V DC, Operating Voltage 24V DC, Enclosure Type Vented, Static Torque 30 ft-lb, Motor Frame Designation 182C NEMA, Horsepower @ RPM 0 hp @ 1725 RPM, 30 hp @ 3450 RPM, Shaft Diameter 7/8 in, Maximum Speed 3,600 RPM, Mounting Location NEMA C-Face Motor or Between Motor and Reducer, For Use With NEMA C-Face Motor/Reducer, Includes Mounting Hardware, Lead Length 30 in, Overall Length 6.75 in, Overall Width 6.75 in, Phase -, Service Factor -
