Watts 1"" Series 009 Reduced Pressure Zone Backflow Preventer
Watts 1"" Series 009 Reduced Pressure Zone Backflow Preventer
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Technical Metric | Operational Assembly Parameters |
|---|---|
| Manufacturer Part Reference | 1" 009M2-QT / LF009M2-QT Series Base Layout |
| Piping Size Profile | 1" (1 Inch) Female NPT Threaded Inlet & Outlet Connections |
| Maximum Working Pressure | 175 PSI Maximum Structural Capability Range |
| Fluid Operational Temperatures | 33°F to 180°F (0.5°C to 82°C) Potable Continuous Range Bounds |
| Structural Body Metal | Heavy-duty cast bronze casing construction providing structural longevity |
| Code Standard Compliance | Certified to ASSE Standard 1013, AWWA C511, IAPMO, and CSA B64.4 |
Couldn't load pickup availability

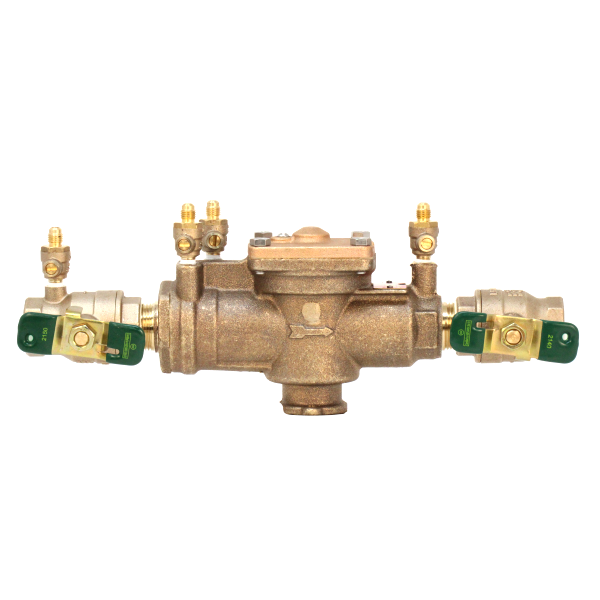

The Watts 1" Series 009 Reduced Pressure Zone (RPZ) backflow preventer assembly is a commercial-tier mechanical barrier designed to protect municipal potable water grids from health-hazard cross-connections. Perfect for containment lines at service entrances, industrial processing loops, firelines, and large irrigation mainlines, this compact assembly isolates systemic backpressure and backsiphonage before contaminants can enter clean drinking supply channels.
Advanced Cross-Connection Fluid Control:
- Dual Independent Check Modules: Houses two localized, positive-seating inline check valves utilizing captured spring architectures and replaceable silicone seats, ensuring zero internal bypass leaking under varying line pressures.
- Hydraulic Differential Relief Valve: Integrated intermediate relief zone automatically vents safely to an approved drain link if an internal check pressure variance is detected, eliminating health-hazard cross-contamination risks.
- Streamlined Single-Access Top Cover: The modular interior core layout can be completely maintained inline through a single, accessible top cover, allowing quick annual inspector certifications and seal cleanings without decoupling the main piping structure.
Complete Assembly Standard: Fully equipped out of the box with dual quarter-turn, full-port resilient seated ball valve shutoffs with tee handles, and four integrated top-mounted test cocks for field differential gauge testing.
