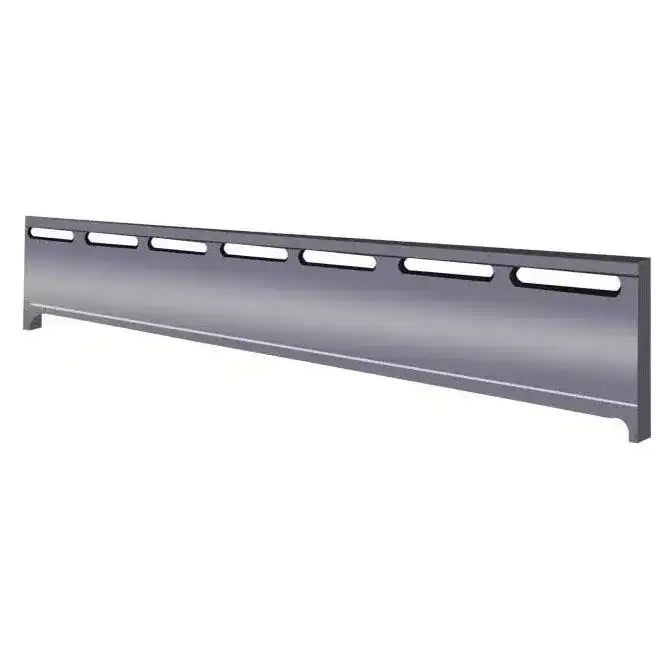

Weil-Mclain 190-100-012 Snug baseboard 655 to 3200 BTU/hr (4 ft)
Weil-Mclain 190-100-012 Snug baseboard 655 to 3200 BTU/hr (4 ft)
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →Product Description
The Weil-McLain 190-100-012 Snug baseboard is a 4-foot cast iron hydronic heating section intended for hot water and steam systems. It provides 655 to 3200 BTU/hour output, accepts a 3/4-inch threaded element connection, and is rated for 110 to 215 F with a working pressure up to 50 psi. The unit supports flow rates of 1 to 6 GPM and is factory-primed for field painting.
- 4 ft cast iron baseboard section for hot water and steam systems; heating capacity 655â3200 BTU/hr
- 3/4-inch threaded element connection; flow rate 1â6 GPM; temperature rating 110â215 F
- Factory-primed finish; rated to 50 psi working pressure; joinable sections for continuous runs
Product Highlights
Cast iron 4 ft hydronic baseboard section with 655â3200 BTU/hr output, 3/4-inch threaded element connection, and 110â215 F temperature rating.
Product Information
Standard Information
- Brand: WEIL-MCLAIN
- Manufacturer Part Number: 190-100-012
Technical Specifications
- Brand: Weil-McLain
- Manufacturer Part Number: 190-100-012
- Product Name: Snug baseboard
- Category: HVAC/R & Fans
- Type: Hot water, Steam
- Material: Cast iron
- Length: 4 ft (48 in)
- Depth: 2.25 in
- Width: 2.25 in
- Height: 9.75 in
- Heating Capacity: 655 to 3200 BTU/hour
- Element Connection: 3/4 inch threaded
- Flow Rate: 1 to 6 GPM
- Temperature Rating: 110 to 215 F
- Working Pressure: 50 psi
- Finish: Factory-primed (suitable for field painting)
- Weight: 68 lb
- UPC: 672619266124
- Alternate Part Numbers: 229435, 280028
- Model: CIB (#9 CIBB)
