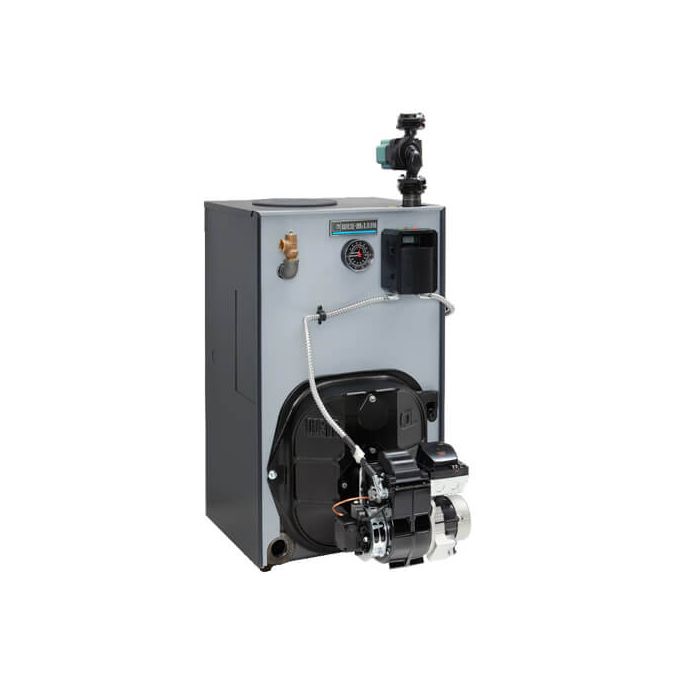

The Weil-McLain 386701027 WTGO-3 is a flexible and durable oil-fired boiler with a tankless coil for water heating. Known for lasting heating solutions, this boiler features efficient energy use and durable cast-iron sections. It excels as a replacement combi boiler and as an addition to new construction. Burner sold separately.
- Simple to Service: Easy to inspect and maintain with a swing-away burner door and quick-open top panel.
- Captured Seals: Silicone-coated fiber ropes are used for sealing the boiler sections, keeping the unit watertight.
- Venting Flexibility: Two vent connections, one on the rear and one on the top, for a variety of installation conditions.
Product Highlights
High efficiency, durable construction, and flexibility make the WTGO an excellent choice for both replacement and new construction applications.
Product Information
Standard Information
- Brand: WEIL-MCLAIN
- Manufacturer Part Number: 386701027
- Country of Origin: United States
Technical Specifications
- AFUE: 86.2 %
- Phase: Single Phase
- Frequency: 60 Hz
- Product Depth: 16 7/8 Inches
- Product Width: 20 1/4 Inches
- CSA Listed: Yes
- Product Height: 35 5/8 Inches
- Product Category: Boiler
- Medium: Hot Water
- Return Connection: 1 1/2 Inches
- Supply Connection: 1 1/4 Inches
- AHRI Certified: Yes
- ASME Certified: Yes
- Fuel Type: Oil-Fired
- Vent Type: Chimney Vent
- Mount Type: Floor
- Net I=B=R Capacity: 85000 BTU
- Flue Connection Size: 6 Inches
- Country of Origin: United States
- Burner Model: Sold Separately
- Product Line: WTGO
- DOE Heating Capacity: 98000 BTU
- Energy Star Listed: Yes
- Assembly Type: Packaged
- Includes Pump: Yes
- DHW Production: Yes
- Combustion Type: Conventional
- AHRI Reference Number: 2101558
- Maximum Altitude: 2000 Feet
- Modulating/Staging: Staging
- Heat Exchanger Material: Cast Iron
- Input Rate: .80 GPH
- MPN: 386-701-027
- UPC / GTIN: 672619218697
- Manufacturer: Weil-McLain
- Series: WTGO Series 4
- Item Type: Boiler
- BTU Input: 112,000
- Material: Cast Iron
- Boiler Type: Residential
- Venting: Chimney Vent
- Application: Residential
- BTU Heat Rating: 115000 Btu/h
- Condensing: No
- Flow Rate: 0.95 gph
- Ignition System: Indirect Fired
- Input (MBH): 98 MBH
- Installation Type: Floor Mount
- MBH: 133
- Return Pipe Connection: 1-1/2
- Supply Pipe Connection Size: 1-1/2
- UL Listed: Yes
- Volts: 120V
