Weil-McLain Ultra Boiler Control Module - 511724951
Weil-McLain Ultra Boiler Control Module - 511724951
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Brand Match | Weil-McLain® |
| Control Class Style | Ultra U-Control™ Module Assembly |
| Input Supply Voltage | 120 VAC / 60 Hz Line Power |
| Internal Circuit Safety | 24 VAC Low Voltage Relay Output Loops |
| Flame Failure Response | 15-Second Post-Purge / Lock-Out Interlock |
| Boiler Line Eligibility | Ultra Series 3, 4, and Commercial Series 1 |

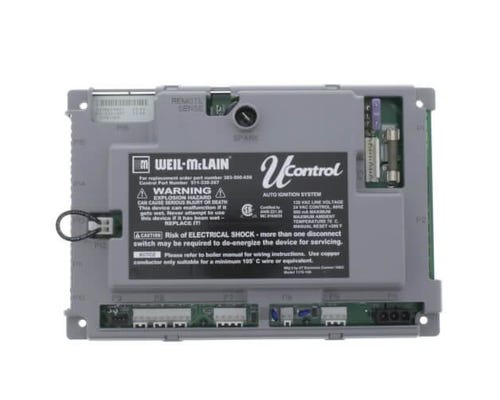

The Weil-McLain® Ultra U-Control™ Module (MPN: 511-724-951 / 383-500-658) is the factory-authorized brain assembly engineered to restore precision ignition sequencing and thermal safety across Ultra Series gas-fired condensing boilers. This advanced microprocessing control network actively manages system logic parameters, responding instantaneously to field signals from the room thermostat, low-water cutoff (LWCO), and air pressure switches.
Key Performance Features:
- Dynamic System Regulation: Controls the full boiler lifecycle—modulating gas valve timing, proving pilot flame integrity within a 15-second trial window, and commanding purging cycles to optimize efficiency.
- Multi-Circulator Coordination: Intelligently sequences system circulators, primary boiler pumps, and dedicated domestic hot water (DHW) loops simultaneously.
- Robust Electrical Protection: Designed with clean external fuse terminal channels to protect the underlying motherboard tracks against external field wiring spikes.
Compatibility Note: This genuine OEM replacement part is specifically optimized for seamless electrical integration into Weil-McLain Ultra Series 3, Series 4, and Series 1 Commercial high-efficiency boiler systems.
