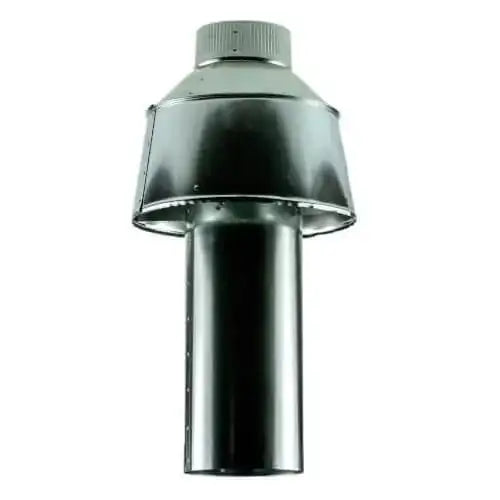

Weil-mclain wm450021245 - Draft Hood for CG/CGA/CGx Boilers
Weil-mclain wm450021245 - Draft Hood for CG/CGA/CGx Boilers
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Proper management of exhaust airflow is essential for the efficiency and safety of natural draft gas boilers. The Weil-McLain WM450021245 Draft Hood serves as the critical interface between the combustion chamber exhaust and the vent stack, specifically engineered for the CG, CGa, and CGx series boiler models.
This component regulates the flow of flue gases leaving the heat exchanger while preventing dangerous backdrafts from entering the combustion zone. By diluting flue gases with room air, the hood stabilizes pressure fluctuations, ensuring consistent burner performance and protecting the integrity of the internal boiler environment.
Key System Performance Baselines:
- Exhaust Regulation: Maintains optimal draft conditions to prevent combustion chamber pressure spikes.
- Safety Integration: Functions as a primary atmospheric bypass to isolate burner operation from external vent stack conditions.
- Airflow Dilution: Mixes room air with flue gases to ensure correct temperature and velocity for reliable chimney venting.
⚠️ Application Profile: Designed exclusively for Weil-McLain residential gas-fired boilers in the CG, CGa, and CGx product lines requiring standard atmospheric venting configurations.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | WM450021245 |
| Model Designation | CG, CGa, CGx |
| Manufacturer | Weil-McLain |
