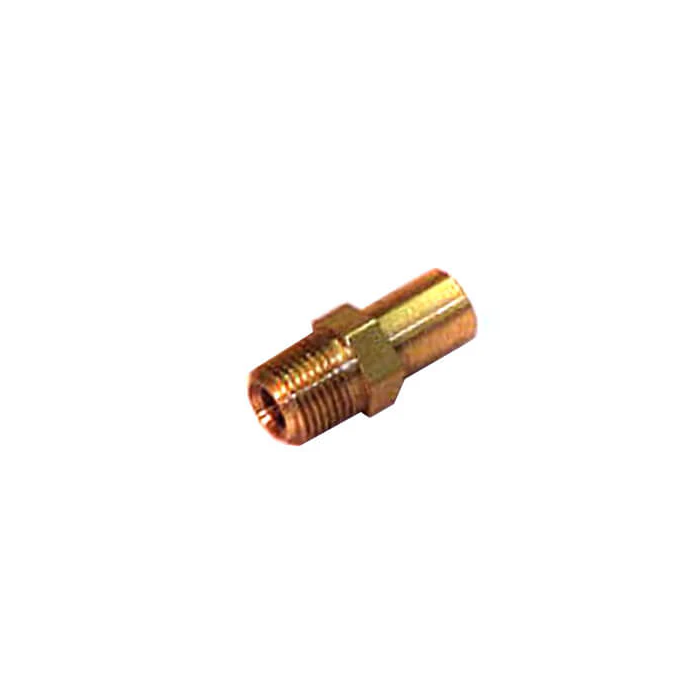

Weil-mclain wm560528987 - Natural Gas Main Burner Orifice
Weil-mclain wm560528987 - Natural Gas Main Burner Orifice
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Optimizing gas-to-air ratios is foundational to maintaining peak boiler efficiency, and the Weil-McLain WM560528987 natural gas main burner orifice is engineered to provide the exact metering required for stable heat output. Serving as the primary flow-control device within the burner manifold, the WM560528987 ensures that fuel delivery adheres to the strict combustion standards required for your heating system.
This orifice regulates the volumetric flow of natural gas based on supply line pressure to maintain a stoichiometric mixture. By stabilizing the flame geometry, the component facilitates complete combustion, which minimizes soot accumulation and prevents ignition inconsistencies throughout the firing cycle.
Key System Performance Baselines:
- Combustion Precision: Maintains the required stoichiometric ratio for clean, efficient fuel consumption.
- Flame Geometry: Promotes a consistent flame pattern to prevent localized hot spots and thermal stress.
- Flow Regulation: Meters natural gas delivery to match specific burner manifold design pressures.
⚠️ Application Profile: This orifice is used in residential and commercial Weil-McLain boiler systems specifically configured for natural gas service, acting as the primary restrictor for manifold-to-burner fuel delivery.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | WM560528987 |
| Manufacturer | Weil-McLain |
| Component Type | Natural Gas Main Burner Orifice |
