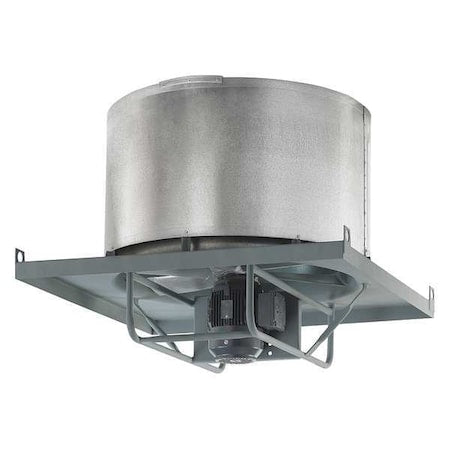

Order the Americraft Fan AM-24-1-1-EXP Direct from National Boiler Supply. Call our order desk at 850-565-3492 for a formal quote or a part number cross-check.
Technical Specifications
| Brand | Americraft Fan |
|---|---|
| Manufacturer Part Number | AM-24-1-1-EXP |
| Includes Motor | Yes |
| Includes Drive Package | Yes |
| Drive Type | Direct Drive |
| Base Length | 39 in |
| Base Width | 39 in |
| Base Shape | Square |
| Nameplate Voltage | 115/230V AC |
| Phase | 1 |
| Motor Horsepower | 1 hp |
| High-Efficiency Motor | No |
| For High-Static Pressure Applications | No |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Blade Diameter | 24 in |
| For Air Type | Flammable Vapor |
| Maximum Static Pressure | 1/2 in wc |
| Maximum Inlet Air Temperature | 104 Degrees F |
OEM Part Verification: Confirm Americraft Fan part number AM-24-1-1-EXP against your equipment nameplate or parts list before ordering. Our order desk can cross-check it for you.
Order Desk Support: Call 850-565-3492 for formal quotes, lead times, and volume pricing.
Related AMERICRAFT FAN Components & Replacement Parts
- Americraft Fan AM-24-1-1-TEFC – Direct, 24 in, Roof, Exh, 7425 CFM, 1 PH, 1 HP, TE – OEM Part # AM-24-1-1-TEFC
- Americraft Fan AM-18-1-3-TEFC – Direct, 18 in, Roof, Exh, 4600 CFM, 3 PH, 1 HP, TE – OEM Part # AM-18-1-3-TEFC
- Americraft Fan AM-24-1-3-EXP – Direct, 24 in, Roof, Exh, 7425 CFM, 3 PH, 1 HP, XP – OEM Part # AM-24-1-3-EXP
- Americraft Fan AM-18-1-3-EXP – Direct, 18 in, Roof, Exh, 4600 CFM, 3 PH, 1 HP, XP – OEM Part # AM-18-1-3-EXP
- Americraft Fan AM-24-1-3-TEFC – Direct, 24 in, Roof, Exh, 7425 CFM, 3 PH, 1 HP, TE – OEM Part # AM-24-1-3-TEFC
Need help confirming a part number or cross-reference? Call our order desk at 850-565-3492.
