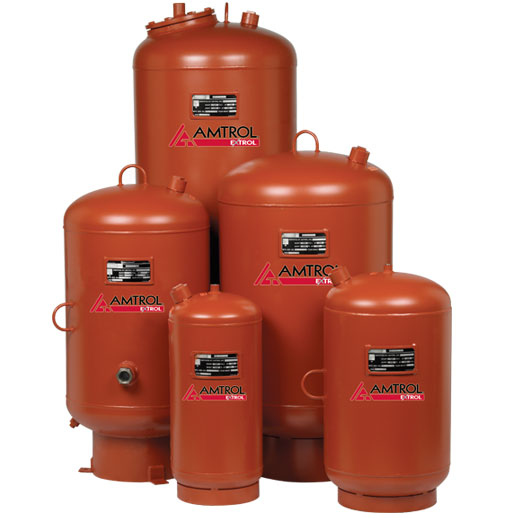

The Amtrol Extrol AX-144V is a commercial-grade, ASME-certified diaphragm expansion tank engineered to control pressure fluctuations in closed, non-potable hydronic heating and chilled water systems. Built with a deep-drawn steel dome design that provides greater strength than traditional head-and-shell construction, the AX-144V isolates a heavy-duty butyl/EPDM diaphragm from system fluid to prevent waterlogging and maintain long-term pressure control.
Specifications
- Tank volume: 77 gallons
- Maximum acceptance volume: 34 gallons
- Tank diameter: 24 inches
- Tank height: 52 inches
- System connection: 1-1/2 inch NPT
- Factory pre-charge: 12 PSIG
- Maximum working pressure: 125 PSIG
- Maximum operating temperature: 240 degrees F
- Construction: ASME Section VIII, Division 1 certified steel shell, heavy-duty Butyl/EPDM diaphragm, Schrader air valve
- Finish: Red oxide primer
- Warranty: 3-year limited
- Origin: Made in USA
⚠️ Application Profile: Ideal for large commercial hydronic heating loops and multi-building or campus-scale chilled water systems requiring high acceptance volume. Ships via LTL freight.
