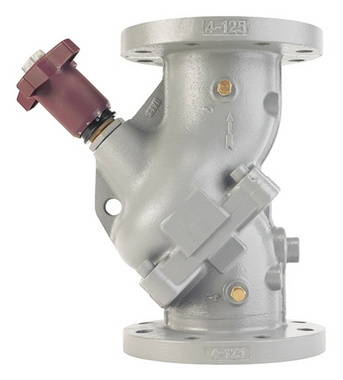

Armstrong 570109-378 CBV-4FS Flanged Circuit Balancing Valve
Armstrong 570109-378 CBV-4FS Flanged Circuit Balancing Valve
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 570109-378 |
| Model Designation | CBV-4FS |
| Connection Type | Flanged |
Optimizing hydronic system efficiency requires precise flow control, and the Armstrong 570109-378 CBV-4FS Flanged Circuit Balancing Valve serves as an essential component for achieving accurate hydraulic balance. Designed for seamless integration into commercial heating and cooling loops, this durable valve simplifies the commissioning process by providing reliable measurement and regulation of water flow across various zones.
The valve functions by utilizing a calibrated orifice mechanism that allows technicians to measure pressure drops accurately, ensuring that each circuit receives the required flow rate. By maintaining proper system resistance, it prevents issues such as uneven temperature distribution, pump strain, and noise, effectively stabilizing overall system performance over the long term.
Key System Performance Baselines:
- Precision Flow Regulation: Enables accurate balancing to ensure energy-efficient fluid distribution.
- Integrated Measurement Ports: Features accessible ports for quick, accurate differential pressure testing during commissioning.
- Robust Construction: Built with a heavy-duty flanged design to withstand high-pressure hydronic operating conditions.
- Versatile Application: Engineered to integrate into a wide variety of commercial HVAC water-based heating and cooling systems.
⚠️ Application Profile: Ideal for commercial HVAC circuit balancing, chilled water distribution loops, and primary-secondary pumping configurations in large-scale building mechanical rooms.
