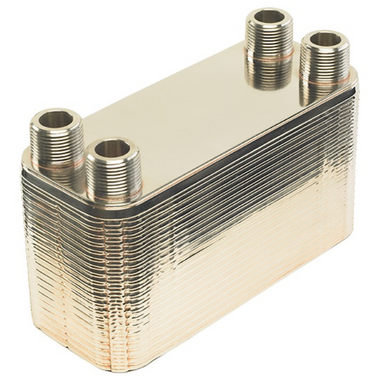

Armstrong ABX030-20 - ABX030-20 Brazed-Plate Heat Exchanger, H030020101

Efficient thermal transfer is essential for modern hydronic systems, and the Armstrong ABX030-20 (part number H030020101) provides a compact, high-performance solution. Designed to facilitate heat exchange between fluids with minimal pressure drop, this brazed plate unit is engineered for reliable operation in demanding HVAC environments.

This heat exchanger utilizes a series of corrugated stainless steel plates that are vacuum-brazed together to form a robust, leak-resistant structure. This advanced design creates high turbulence even at low flow rates, significantly increasing the heat transfer coefficient and ensuring optimal energy efficiency throughout the life of the unit.

Key System Performance Baselines:

• Thermal Efficiency: Optimized plate geometry promotes high turbulent flow for superior heat exchange.
• Structural Integrity: Vacuum-brazed construction ensures pressure resistance and long-term durability.
• Compact Footprint: Space-saving design allows for easy integration into constrained mechanical rooms.
• Operational Versatility: Suitable for a wide range of fluid-to-fluid heating and cooling applications.

⚠️ Application Profile: Ideal for residential and light commercial hydronic heating, domestic hot water production, solar thermal installations, and radiant floor heating manifolds.

📋 Procurement & Shipping Notice

• LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
• Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?

👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
