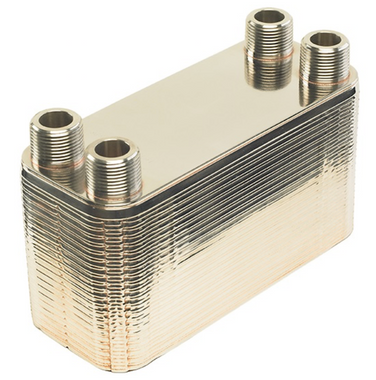

Armstrong ABX050-60 - ABX050-60 Brazed-Plate Heat Exchanger

Maximize thermal efficiency in your hydronic system with the high-performance Armstrong ABX050-60 brazed plate heat exchanger. Engineered for durability and precision, this model H050060101 ensures consistent heat exchange in compact spaces, making it a critical component for maintaining optimal fluid temperatures in commercial and residential heating loops.

The unit utilizes a series of corrugated stainless steel plates that create high-turbulence flow patterns. This advanced design forces liquid streams into a complex pathway that maximizes surface area contact, significantly increasing heat transfer coefficients while minimizing the physical footprint of the equipment.

Key System Performance Baselines:

• Thermal Efficiency: Optimized for high-capacity heat transfer in compact layouts.
• Corrosion Resistance: Manufactured with premium materials for long-term reliability.
• Compact Profile: Streamlined brazed design minimizes installation clearance requirements.
• Flow Dynamics: Engineered to reduce pressure drop while maintaining high heat exchange rates.

⚠️ Application Profile: Ideal for hydronic heating systems, domestic hot water production, solar thermal integration, and industrial fluid cooling processes.

📋 Procurement & Shipping Notice

• LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
• Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?

👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
