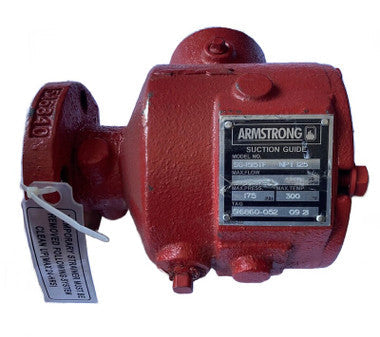

Armstrong SG-1515TF - SG-1515TF Suction Guide, 1.5 x 1.5
Armstrong SG-1515TF - SG-1515TF Suction Guide, 1.5 x 1.5
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Protect your hydronic pumping systems from harmful debris and turbulence with the Armstrong SG-1515TF suction guide. Engineered for precision flow management, this unit serves as a critical component for pump longevity, specifically identified by part number 516860-052. It is designed to ensure a consistent, laminar flow into the pump suction, which significantly reduces the risk of cavitation and premature seal wear.
The suction guide functions by utilizing a built-in straightening vane to minimize vortex formation and turbulence at the pump inlet. This compact assembly effectively combines the benefits of a conventional strainer and an elbow, reducing the total footprint required for installation while providing robust support for the system piping.
Key System Performance Baselines:
- Flow Stabilization: Integrated vanes promote uniform velocity profiles entering the pump impeller.
- Debris Filtration: Heavy-duty screen prevents solids from damaging internal pump components.
- Space Efficiency: Compact 1.5 x 1.5 design replaces bulky suction elbows and strainers.
- Maintenance Access: Accessible blow-down port simplifies routine cleaning and debris removal.
⚠️ Application Profile: Ideal for commercial hydronic heating and cooling systems, pump room piping retrofits, and high-efficiency fluid circulation loops where suction-side protection is vital for pump longevity.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 516860-052 |
| Model Designation | SG-1515TF |
| Connection Size | 1.5 x 1.5 |
