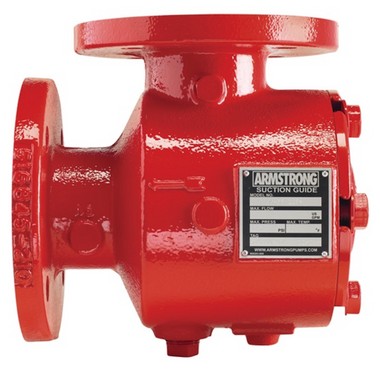

Armstrong SG-54 - SG-54 Suction Guide, 516860-022
Armstrong SG-54 - SG-54 Suction Guide, 516860-022
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Maintain system integrity and pump longevity with the Armstrong SG-54 Suction Guide, identified by part number 516860-022. This essential component is engineered for direct installation onto the suction flange of both horizontal and vertical pumps, acting as a robust shield against harmful debris and foreign matter that could compromise internal components.
The suction guide functions by smoothing incoming flow to reduce turbulence and pressure drops, which directly improves the suction conditions of the pump. By effectively straightening the fluid stream before it reaches the impeller, it helps prevent cavitation and ensures consistent hydraulic performance across your hydronic or HVAC system.
Key System Performance Baselines:
- Debris Protection: Prevents foreign matter from entering the pump housing.
- Flow Optimization: Reduces turbulence to ensure laminar flow into the pump suction.
- Space-Saving Design: Combines the functions of a standard suction strainer and an elbow into one compact unit.
⚠️ Application Profile: Primarily utilized in commercial HVAC chilled and hot water systems, industrial fluid transport, and large-scale mechanical pumping stations where pump protection and hydraulic efficiency are critical.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 516860-022 |
| Model Designation | SG-54 |
