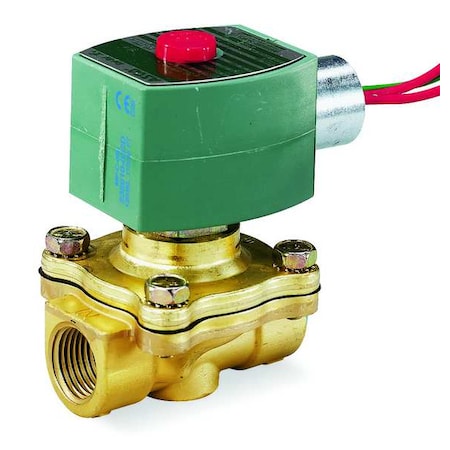

Asco 8210G027 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120 V AC, High Flow, Brass, NBR

The ASCO 8210G027 is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a 2-way/2-position high flow valve design with a 1-inch nominal pipe size and orifice diameter, suitable for various industrial fluid control applications. The valve is constructed with a brass body, includes a coil and seal, and is intended for vertical mounting orientation. Operating ambient temperature range: 14°F to 140°F; maximum media temperature: 200°F.

Key Features:

• - Valve Design: 2-Way/2-Position, normally closed configuration
• - Body Material: Brass
• - Media Compatibility: Air, inert gas, light oil, water
• - Nominal Pipe Size: 1 inch, with 1-inch orifice diameter
• - Operating Pressure Differential: Maximum 300 psi (air/inert gas), 115 psi (light oil), 225 psi (water); minimum 0 psi across all media
• - Coil: Included, rated 120V AC at 60 Hz, 20.1 watts power consumption, insulation class F
• - Electrical Connection: 1/2 inch conduit hub
• - Coil Enclosure: Watertight, without junction box
• - Protection ratings: IP66 and NEMA 1, 2, 3, 3S, 4, 4X
• - Mounting Orientation: Vertical
• - Valve Type: High flow, pilot operated
• - Dimensions: Overall height 6-9/16 inches; length 3-15/16 inches; width 3-1/4 inches
• - Seal Material: NBR (Buna-N)
• - Response Time: 1 second
• - Thread Type: NPT for both inlet and outlet connections (NPTF)
• - Certifications: UL Listed
