Bell & Gossett 179256LF e-90 07S BF 1.5AAB Inline Pump
Bell & Gossett 179256LF e-90 07S BF 1.5AAB Inline Pump
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 179256LF |
| Model Designation | e9007S (e-90 Series 1.5AAB) |
| Pipe Connection Size | 1.5" Companion Flanged |
| Motor Horsepower / Speed | 1/4 HP @ 1725 RPM |
| Electrical Characteristics | 115/208-230V / 1-Phase / 60 Hz (ODP Enclosure) |
| Impeller Diameter | 4.0" Bronze |
| Body Construction | Cast Iron Volute (Bronze-Fitted) |
| Max Operating Pressure / Temp | 175 PSI (12 bar) @ 250°F (121°C) |
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Logistics Notice
Fulfillment parameters vary based on active supply chain distributions and contract schedules:
- Standard inventory configurations typically dispatch within 24 to 48 hours.
- High-capacity commercial units or specialty phase requirements may face factory production lead times.
Need precise lead times, formal submittals, or shipping coordination for contract fulfillment? Please Request a Commercial Quote or contact our procurement support line.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →Bell & Gossett 179256LF (e9007S) e-90 Series 1.5" Bronze-Fitted In-Line Centrifugal Pump

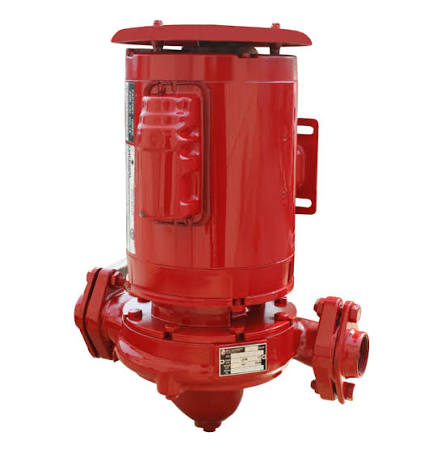

Engineered for high-efficiency commercial hydronic circulation, the Bell & Gossett 179256LF (Model e9007S) is a heavy-duty, close-coupled in-line centrifugal pump designed for closed-loop HVAC heating and cooling systems. Featuring a 1.5" flanged connection, a cast iron volute with bronze internal fitting, and a 1/4 HP single-phase motor, this pump delivers reliable, quiet operation across small-to-medium fluid loops.
Built on a compact NEMA 56J motor platform, the e-90 series eliminates external couplers, stub shafts, and bearing frames for a space-saving footprint that installs vertically or horizontally. Its convenient back-pull-out design allows quick internal servicing without disconnecting main piping. Equipped with a 303 stainless steel shaft, double-sealed ball bearings, and a unitized EPR/Carbon/Silicon-Carbide mechanical seal, this unit is rated for pressures up to 175 PSI and temperatures up to 250°F.
Key System Performance Baselines:
- Bronze-Fitted Cast Iron Construction: Cast iron casing with bronze impeller delivers high hydraulic efficiency in closed-loop hydronic loops.
- Single-Phase Commercial Motor: 1/4 HP 115/208-230V single-phase ODP motor engineered for continuous commercial operation.
- Back-Pull-Out Design: Internal pump assembly and motor detach easily from the rear without disturbing system piping.
- Durable Mechanical Shaft Seal: Unitized EPR/Carbon/Silicon-Carbide seal provides long service life and leak prevention up to 250°F.
⚠️ Application Profile: Ideal for commercial HVAC hydronic heating, chilled water cooling loops, pressure boosting, and heat exchanger circulation requiring 1.5" flanged connections up to 175 PSI.
