Bell & Gossett 179322LF e-90 125 AB 2AAB Inline Pump
Bell & Gossett 179322LF e-90 125 AB 2AAB Inline Pump
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 179322LF |
| Model Designation | Be9012S (e-90 Series 2AAB) |
| Pipe Connection Size | 2" Companion Flanged |
| Motor Horsepower / Speed | 1/2 HP @ 1725 RPM |
| Electrical Characteristics | 115/208-230V / 1-Phase / 60 Hz (ODP Enclosure) |
| Impeller Diameter | 4.25" Bronze |
| Body & Volute Material | All Bronze (ASTM B584) |
| Max Operating Pressure / Temp | 175 PSI (12 bar) @ 250°F (121°C) |
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Logistics Notice
Fulfillment parameters vary based on active supply chain distributions and contract schedules:
- Standard inventory configurations typically dispatch within 24 to 48 hours.
- High-capacity commercial units or specialty phase requirements may face factory production lead times.
Need precise lead times, formal submittals, or shipping coordination for contract fulfillment? Please Request a Commercial Quote or contact our procurement support line.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.

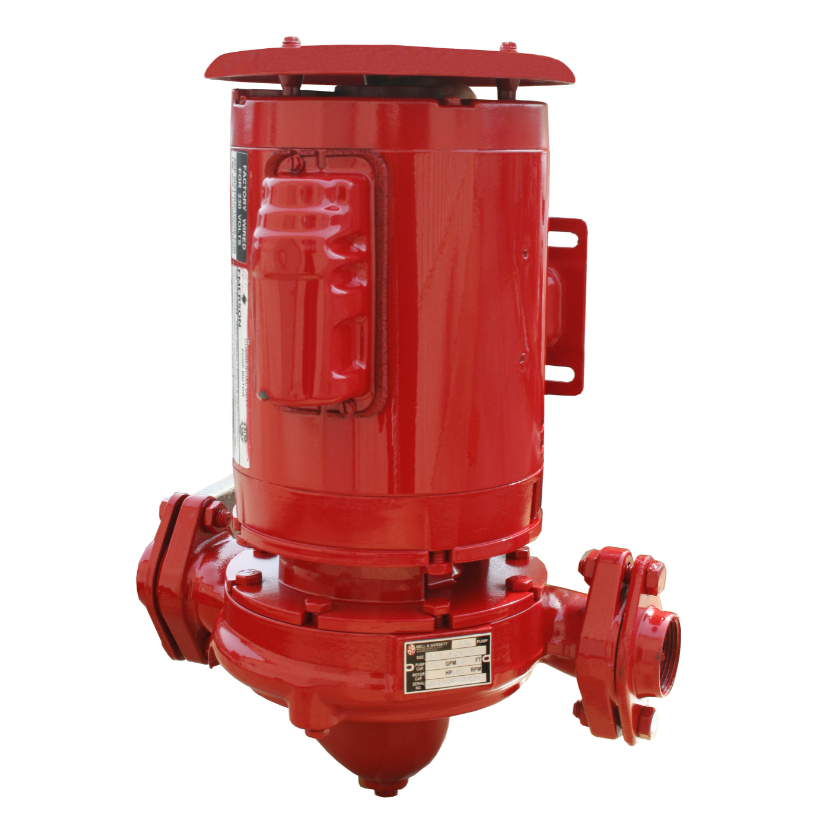

Apply for Trade Account & Terms →Bell & Gossett 179322LF (Be9012S) e-90 Series 2" All-Bronze In-Line Centrifugal Pump
Engineered for high-efficiency fluid circulation and long-lasting corrosion resistance, the Bell & Gossett 179322LF (Model Be9012S) is a close-coupled in-line centrifugal pump designed for commercial HVAC hydronic heating, cooling, potable water, and boiler recirculation applications. Featuring a 2" flanged connection, a 1/2 HP ODP motor, and a 4.25" impeller, this All-Bronze unit delivers quiet, continuous performance across medium-capacity liquid circulation loops.
The e-90 series utilizes a close-coupled design built on a standard NEMA 56J motor platform, eliminating the need for a separate bearing frame, coupler, or stub shaft. Its back-pull-out construction allows internal servicing without disturbing system piping connections. Equipped with a 303 stainless steel shaft, double-sealed ball bearings, and a unitized EPR/Carbon/Silicon-Carbide mechanical seal, this pump ensures superior durability and leak-free operation up to 175 PSI.
Key System Performance Baselines:
- All-Bronze Construction: Cast bronze volute and impeller provide maximum corrosion resistance in potable water and open hydronic systems.
- Back-Pull-Out Design: Internal pump assembly and motor remove easily from the rear of the casing without disconnecting piping.
- Close-Coupled Efficiency: Compact footprint mounts directly into horizontal or vertical pipe lines with no external coupling alignment required.
- Durable Mechanical Seal: Factory-fitted with a unitized EPR/Carbon/Silicon-Carbide mechanical shaft seal rated up to 250°F.
⚠️ Application Profile: Ideal for commercial hydronic heating, chilled water cooling, potable hot water circulation, pressure boosting, and boiler recirculation lines requiring 2" flanged connections up to 175 PSI operating pressure.
Product Documents
