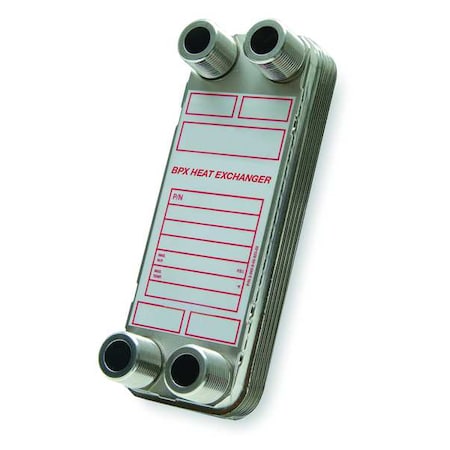

The Bell & Gossett BP422-60-LCA Brazed Plate Heat Exchanger is designed for efficient liquid and oil cooling in applications such as refrigerant evaporators, condensers, and residential hydronic systems. Its durable construction and high heat transfer capacity make it suitable for demanding industrial and commercial environments.
Key Features:
- - Constructed with ASTM 316L stainless steel plates and copper brazing for excellent corrosion resistance and durability
- - Contains 60 plates with a total surface area of 61.65 sq ft for effective heat transfer
- - Heat dissipation capacity up to 2,500,000 BtuH (water) and 438,600 BtuH (oil)
- - Supports maximum flow rate of 225 gallons per minute
- - Operates within a temperature range of -310°F to 450°F
- - Maximum pressure rating of 435 psig
- - Equipped with 2-inch male NPT stainless steel pipe fittings for secure connections
- - Compact dimensions: 24 1/4" (H) x 7 1/2" (W) x 7 1/4" (D), weighing 73.6 lbs
- - ASME, CRN certified, and UL listed for safety and reliability
- - Made in the USA
