Bell & Gossett Series e-90 - Series e-90 Commercial In-Line Pump

The Bell & Gossett Series e-90 Commercial In-Line Centrifugal Pump represents the industry standard in close-coupled hydronic fluid distribution. Engineered for peak mechanical reliability in commercial HVAC, hydronic heating loops, chilled water distribution, and domestic water pressure boosting networks, the e-90 mounts directly into your existing pipe lines—completely eliminating the need for specialized structural concrete base foundations.

Precision Dynamic Performance

As a foundational block of Bell & Gossett’s ultra-high-efficiency portfolio, every e-90 pump features an internally optimized, computational fluid dynamics (CFD) mapped volute paired with a dynamically balanced enclosed impeller. This architecture dramatically cuts operating costs while delivering whisper-quiet fluid velocity. The true close-coupled layout guarantees dead-on alignment between the electric motor frame and the pump shaft, drastically extending the service lifespan of internal mechanical seals and heavy-duty ball bearings.

Heavy Commercial Structural Features

• Time-Saving Back Pull-Out Assembly: Perform comprehensive internal inspections, impeller trims, or complete seal replacements without ever breaking or unbolting the primary volute casing from your system piping network.
• Premium Material Seals: Outfitted with high-durability mechanical seals designed to easily withstand intense chemical water treatments and continuous system thermal variations.

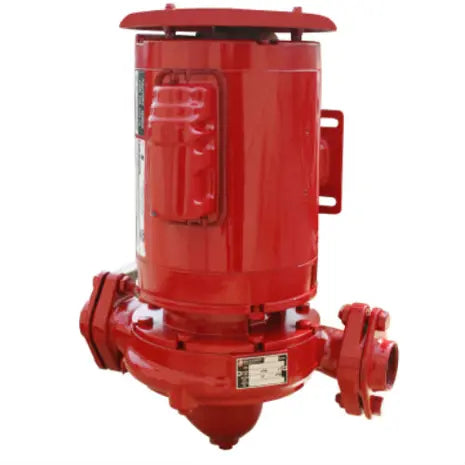

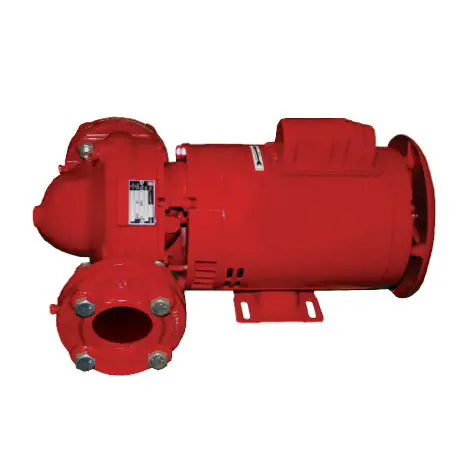

• Versatile Piping Orientation: Heavy-duty iron casings can be mounted in both horizontal and vertical piping pipelines to seamlessly accommodate tight mechanical room space restrictions.

Looking for exact pressure drop curves or flanged bolt dimensions for a specific size? Click here to request the official factory submittal manuals from our engineering desk.

📋 Procurement & Shipping Notice

• LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
• Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?

👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
