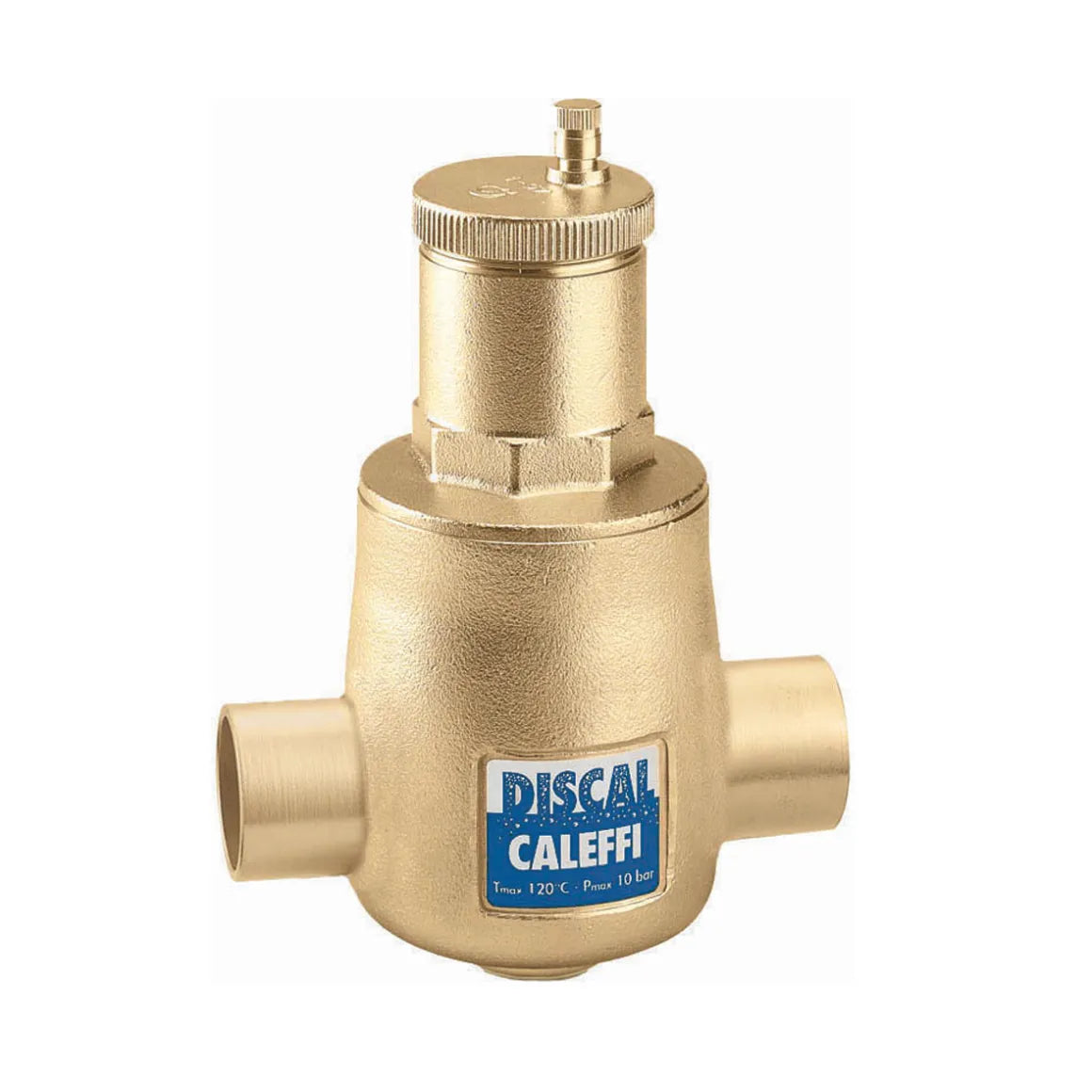

Caleffi Discal 1.25 NPT High-Efficiency Air Separator
Caleffi Discal 1.25 NPT High-Efficiency Air Separator
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Manufacturer Part Number (MPN) | 551007A (DISCAL Series) |
| Nominal Connection Size | 1-1/4" Female NPT Threaded Connections (FNPT x FNPT) |
| Operating Performance Ratings | 150 PSI Max Working Pressure @ 32–250°F Fluid Temperature Range |
| Internal Coalescing Trim | Glass-Reinforced Nylon PA66GF30 Element with Stainless Steel Vent Linkages |
| Fluid / Medium Suitability | Water or Glycol Closed Solutions (Up to 50% Maximum Concentration) |
The Caleffi Discal 1.25 NPT High-Efficiency Air Separator (551007A) is a high-performance system component engineered to deliver premium fluid distribution efficiency and reliability. Built with a heavy-duty brass housing, this unit provides exceptional durability and outstanding resistance to demanding system environments. Its low-maintenance, high-performance architecture makes it an ideal solution for hydronic heating and cooling configurations.
Engineered to continuously clear entrained micro-bubbles down to a macroscopic level, the DISCAL 551 series purges accumulated system air with minimal head loss across the circuit layout. Inside the primary chamber, an advanced glass-reinforced nylon internal element coalescing assembly slows internal flow velocity, forcing hidden micro-bubbles to aggregate, float upward, and automatically escape via its high-capacity automatic atmospheric air vent structure. This full de-aeration cycle dramatically mitigates ongoing line chatter noise, stops oxygen-driven localized pipe corrosion, eliminates cavitation damage inside commercial circulator assemblies, and lowers recurring call-backs.
