Copper Straight Coupling C x C
Copper Straight Coupling C x C
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Nominal Connection Size | Fitting Type | Material Composition | Joint Alignment Feature | Industry Specifications |
|---|---|---|---|---|
| 1/4" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Internal Dimple / Rolled Stop | ASME B16.22 / NSF 61 |
| 3/8" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Internal Dimple / Rolled Stop | ASME B16.22 / NSF 61 |
| 1/2" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Internal Dimple / Rolled Stop | ASME B16.22 / NSF 61 |
| 3/4" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Internal Dimple / Rolled Stop | ASME B16.22 / NSF 61 |
| 1" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Internal Dimple / Rolled Stop | ASME B16.22 / NSF 61 |
| 1-1/4" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Internal Dimple / Rolled Stop | ASME B16.22 / NSF 61 |
| 1-1/2" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Internal Dimple / Rolled Stop | ASME B16.22 / NSF 61 |
| 2" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Internal Dimple / Rolled Stop | ASME B16.22 / NSF 61 |
Couldn't load pickup availability

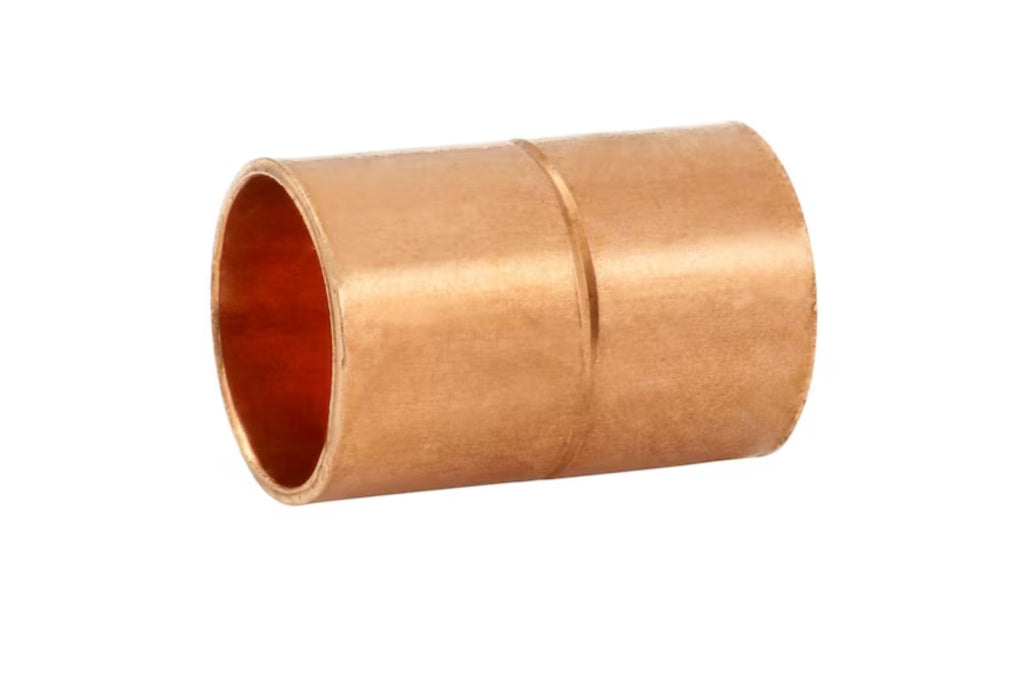

Copper Straight Coupling (C x C)
Engineered to smoothly join two straight copper pipe lengths inline, our Copper Straight Coupling (C x C) delivers exceptional leak-free reliability and high-pressure endurance. This seamless fitting features a dual female solder cup configuration (Copper x Copper) equipped with a precision-rolled internal tube stop. The integrated stop guides the pipe to an exact insertion depth, maximizing capillary force for a perfectly balanced solder bond.
Manufactured from high-purity, premium wrot copper conforming to ASME B16.22 specifications, this straight sleeve coupling provides maximum resistance to corrosion, scaling, thermal shock, and mechanical stress.
Key System Performance Baselines:
- Application Profile: Rated for commercial and residential potable water lines, hydronic heating loops, air conditioning circuits, and compressed gas installations.
- Internal Tube Stop: Built-in structural ridge ensures concentric alignment and even distribution of solder or brazing alloys.
- Connection Type: Solder Cup x Solder Cup (C x C) ports, designed for long-term reliability and complete immunity to dezincification.
- Trade Compliance: Manufactured from lead-free rigid compound certified to ASME B16.22 and NSF/ANSI Standard 61 requirements for potable water service.
⚠️ Installation Advisory: Always cut copper pipe ends completely square, debur internal/external edges, and clean the joint areas thoroughly before applying flux. Inconsistent prep work can disrupt capillary action and compromise the joint profile.
