Dayton 3C049 - Backward-Inclined Industrial Blower (3 C049)
Dayton 3C049 - Backward-Inclined Industrial Blower (3 C049)
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

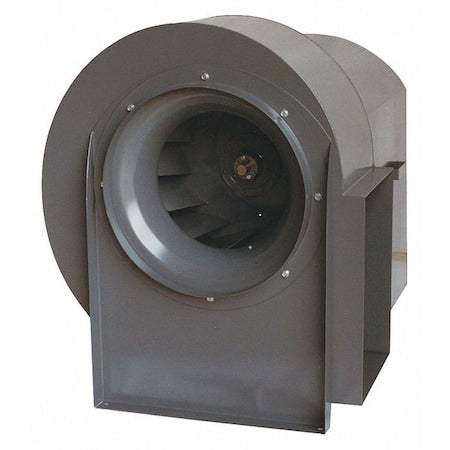

The DAYTON 3C049 Backward-Inclined Blower is a belt-driven steel blower designed for heating, air conditioning, ventilating, and similar systems operating under low to medium pressures. This unit supports a maximum airflow of 13,940 cfm and can handle inlet air temperatures up to 250°F. It features a backward-inclined steel wheel with a 24-1/2 in diameter and operates within a fan speed range of 870 to 1,485 RPM. The blower housing is made from gray epoxy-coated steel and provides multiple discharge positions for installation flexibility. This model is supplied unassembled and does not include a motor or drive package.
Key Features:
- - Wheel Type and Material: Backward-inclined steel wheel, 24-1/2 in diameter, 12 in width
- - Drive Type: Belt drive configuration without drive package
- - Airflow Range: 5,356 to 13,940 cfm; static pressure up to 4-1/2 in wc
- - Motor Compatibility: 2 to 10 hp motor range (motor not included)
- - Operating Temperature: Handles inlet air up to 250°F; ambient up to 104°F
- - Fan Speed: 870 to 1,485 RPM
- - Construction: Steel housing with gray baked polyester epoxy finish
- - Mount Type: Motor mount design; includes epoxy-coated steel weatherproof drive cover
- - Bearings: Pillow block ball bearings
- - Discharge Positions: Six configurations including top, bottom, angular, and horizontal orientations
- - Dimensions: 47-7/8 in H × 42-7/8 in W × 47-3/8 in D
- - Standards: AMCA Air Performance Certified; meets NEC and OSHA standards
- - Features: Dynamically balanced wheels for Class I performance, fixed-sheave drive, single inlet design
- - Warranty: 1-year limited manufacturer warranty
