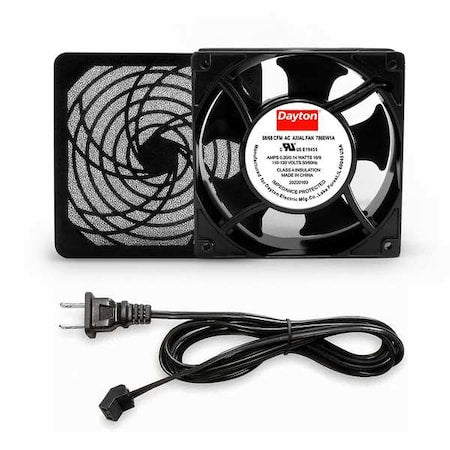

The Dayton 786EW1 Square Axial Fan Kit is available from National Boiler Supply. We support purchasing teams with fast dispatch, formal quotes, and a live order desk at 850-565-3492.
Technical Specifications
| Brand | Dayton |
|---|---|
| Manufacturer Part Number | 786EW1 |
| Mounting Eye O.C. | 4 1/8 in |
| Height | 4 3/4 in |
| Depth | 1 1/2 in |
| Width | 4 3/4 in |
| Fan Cord Length | 72 in |
| CFM @ 0.000-In. SP | 68/68 cfm |
| Watts | 10/9 W |
| Voltage | 120V AC |
| Hz Hz | 50/60 Hz |
| Amps | 0.20/0.14 A |
| Connection - Fans Terminals | Electrical |
| Sound Level | 38/35 |
| IP Rating | 20 |
| Mounting Position | Vertical or Horizontal |
| Bearing Type | Ball |
| RPM | 2200/2000 RPM |
| Motor Design | Shaded Pole |
| Motor Insulation Class | A |
| Thermal Protection | Impedance Protected |
OEM Part Verification: Confirm Dayton part number 786EW1 against your equipment nameplate or parts list before ordering. Our order desk can cross-check it for you.
Order Desk Support: Call 850-565-3492 for formal quotes, lead times, and volume pricing.
