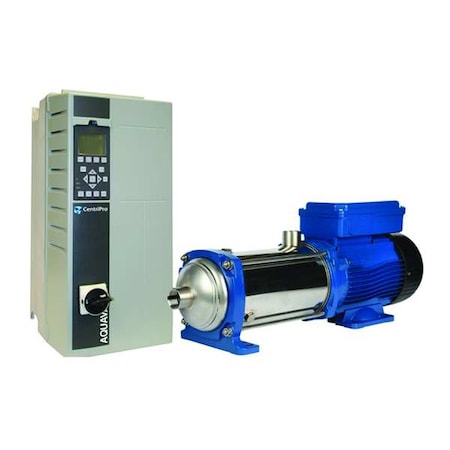

Order the Goulds 3AVN310HM03 Constant Pressure Booster Pump from National Boiler Supply. Call our order desk at 850-565-3492 for a formal quote or a part number cross-check.
Technical Specifications
| Brand | Goulds |
|---|---|
| Manufacturer Part Number | 3AVN310HM03 |
| Horsepower | 3 hp |
| Voltage | 230 |
| Amps | 7.9 |
| Frequency | 60 Hz |
| Motor RPM | 3500 |
| Service Factor | 1.15 |
| Motor Ambient Temp. Rating | 40 Degrees C |
| Housing Material | Stainless Steel |
| Inlet | 1-1/2 In. |
| Outlet | 1-1/4 In. |
| Stages | 3 |
| Impeller Material | Stainless Steel |
| Impeller Type | Closed |
| Seal Material | Carbon/Ceramic/Rubber |
| Pressure Range | 0 to 100 psi |
| Max. Liquid Temp. | 250 Degrees F |
| Includes | Pump Controller |
Additional details: 1 Phase, TEFC, Stainless Steel Wetted Materials.
OEM Part Verification: Confirm Goulds part number 3AVN310HM03 against your equipment nameplate or parts list before ordering. Our order desk can cross-check it for you.
Order Desk Support: Call 850-565-3492 for formal quotes, lead times, and volume pricing.
