Grundfos 98126820 MAGNA3 32-60 F Circulator Pump
Grundfos 98126820 MAGNA3 32-60 F Circulator Pump
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 98126820 |
| Electrical Input Parameters | 1x115-230V / 50-60 HZ (Universal Single Phase) |
| Port-to-Port Length / Flange Dimension | 165 mm / Standard 2-Bolt Flange Connection |
| Maximum System Operating Pressure | 175 PSI (12 bar) |
| Allowable Media Temperature Range | 14°F to 230°F (-10°C to 110°C) |
| Pump Housing Metallurgy | Cast Iron (EN-GJL-200 / ASTM 30 B) |
| Control Modes & VFD Integration | AUTOADAPT, FLOWADAPT, FLOWLIMIT, Proportional Pressure, Constant Curve |

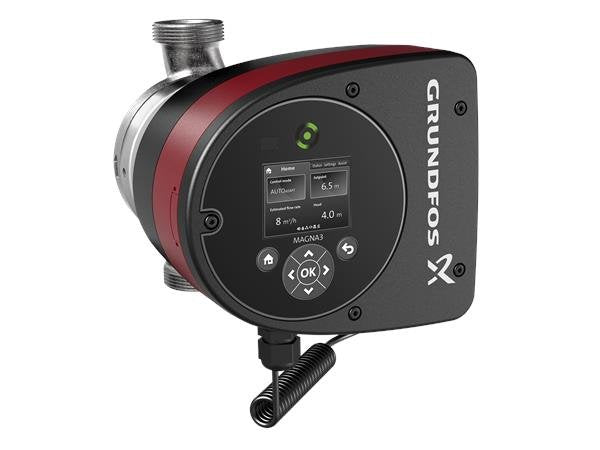

Grundfos MAGNA3 32-60 F 165 High-Efficiency Circulator Pump
Engineered for unmatched reliability and precision flow control in commercial hydronic heating, air conditioning, and domestic hot water loops, the Grundfos MAGNA3 32-60 F is an advanced, wet-rotor canned-rotor circulator pump. Featuring an integrated variable frequency drive (VFD) and intelligent ECM motor technology, the MAGNA3 automatically analyzes system demands and continuously adjusts its speed to deliver maximum energy savings.
The MAGNA3 stands out with its intuitive FLOWLIMIT and FLOWADAPT control modes. These proprietary algorithms eliminate the need for external balancing valves in most commercial configurations, lowering your initial installation hardware overhead and protecting the system against high-differential wear over long runtime cycles.
Key System Performance Baselines:
- Intelligent ECM Motor Architecture: Permanent magnet motor design cuts energy consumption by up to 75% compared to traditional fixed-speed commercial circulators.
- Canned-Rotor Efficiency: The pump and motor form an integral unit without a mechanical shaft seal, utilizing liquid-lubricated bearings for virtually silent, maintenance-free continuous operation.
- Advanced System Communications: Built-in infrared communications link directly with the Grundfos GO app, allowing field estimators to run rapid diagnostics, capture data logs, and adjust configurations on-site.
- Rugged Flanged Casing: High-grade cast iron construction with standard 165mm port-to-port dimensions and a robust 175 PSI maximum pressure envelope for reliable mechanical integration.
⚠️ Application Profile: The MAGNA3 32-60 F is the industry standard for commercial HVAC loops, secondary blending circuits, geothermal heat pump loops, and large-scale solar thermal arrays.
