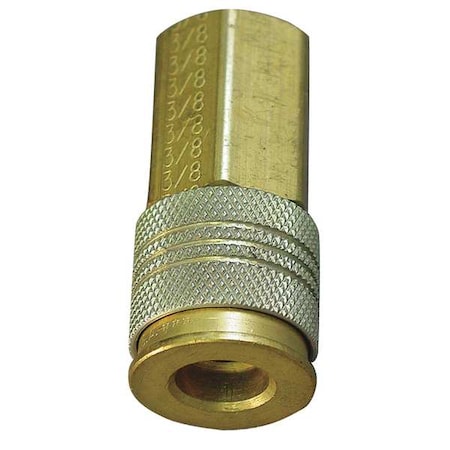

Hansen B23AS37F - Coupler Body,(F)NPT,1/4,Brass
Hansen B23AS37F - Coupler Body,(F)NPT,1/4,Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The HANSEN - B23AS37F is a quick-connect hose coupling intended for use with pneumatic and fluid line applications. It provides a push-to-connect locking mechanism for coupling and uncoupling using a push-to-connect locking mechanism, when installed and used according to the manufacturer’s instructions. The coupling is intended to form a sealed joint for pneumatic and fluid line use and is compatible with pneumatic and fluid line applications within the specified ratings.
Key Features:
- - Compatibility: compatible with AR0210, Industrial Interchange, and Tru-Flate system connections, when matched to the specified thread and hose fitting sizes.
- - Size: Features a 3/8 in body size, hose fitting size, and coupling size with 3/8"-18 thread size.
- - Material and Finish: Brass construction with a zinc plated coating.
- - Connection Type: Female hose fitting with NPT threading.
- - Valve: Includes an integrated poppet valve to control fluid or air flow.
- - Seal Material: Nitrile sealing element.
- - Dimensions: Overall length of 2 in and a maximum outside diameter of 15/16 in.
- - Pressure and Temperature: maximum working pressure rating: 150 psi at 70°F and rated temperature range: -40°F to 250°F.
- - Maximum Flow Rate: maximum flow rate: 792 L/min.
