Honeywell VR8345M4302 Universal Combination Gas Valve - VR8345M4302
Honeywell VR8345M4302 Universal Combination Gas Valve - VR8345M4302
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Inlet / Outlet Connection Size | 3/4" x 3/4" NPT Female (Includes 3/4" to 1/2" Reducer Bushings) |
| Ignition Control Capabilities | Intermittent Pilot (IP) | Direct Spark (DSI) | Hot Surface (HSI) |
| Capacity Range Threshold | 30,000 to 415,000 BTU/hr (Maximum) |
| Electrical Operating Spec | 24 VAC, 50/60 Hz, Single Stage |
| Pressure Regulator Settings | 3.5" W.C. (Natural Gas Standard Setting) |
| Maximum Inlet Pressure | 0.5 PSI (14.0" W.C.) |
| Ambient Temperature Rating | -40°F to 175°F (-40°C to 79°C) |
| Safety Agency Approvals | CSA Certified, UL Recognized Components |
Couldn't load pickup availability

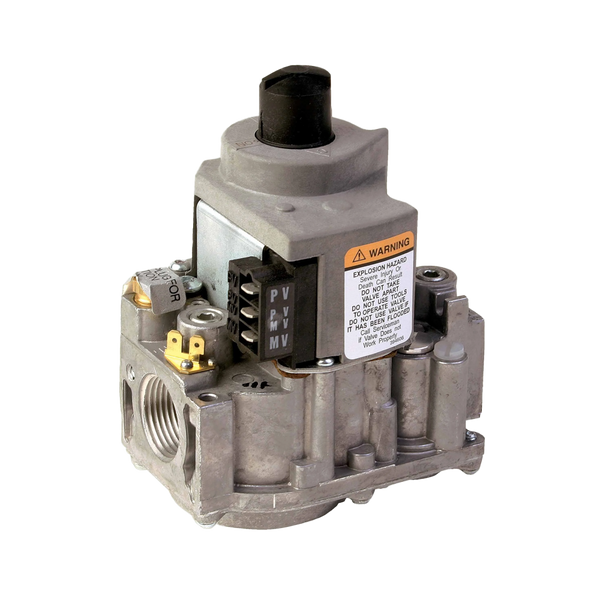

The Honeywell / Resideo VR8345M4302 Universal Combination Gas Valve is an all-in-one universal electronic ignition gas control engineered for maximum field adaptability. Designed for heavy-duty use in gas-fired heating appliances, this single-stage, standard-opening valve is fully compatible with 24 Vac Intermittent Pilot (IP), Direct Spark Ignition (DSI), and Hot Surface Ignition (HSI) systems. By integrating a manual shutoff valve, dual automatic operators, an adjustable pressure regulator, and a pilot connection safety interface into a single compact footprint, it acts as the ultimate replacement cross-reference for hundreds of legacy boiler and furnace controls.
Key Performance Features:
- Universal Field Cross-Compatibility: Engineered to field-replace a massive array of standard 24V heating matrix valves. Out of the box, it supports direct heating configurations ranging from 30,000 up to 415,000 BTU/hr capacities.
- Complete LP Conversion Kit Included: Shipped factory-set for standard Natural Gas lines, but includes a certified complete Liquid Propane (LP) conversion kit along with two 3/4" x 1/2" reducer bushings to simplify plumbing layout adjustments.
- Installer-Friendly Enclosure Geometry: Features an ultra-compact body with a tight 4-inch swing radius, enabling smooth, unhindered tool rotation and fast mounting inside confined equipment vestibules and air handlers.
Application Infrastructure Profile: Perfect for facilities maintenance warehouses, public school mechanical rooms, and municipal heating arrays utilizing commercial gas-fired furnaces, space heaters, commercial rooftop units, or atmospheric hydronic boilers.
