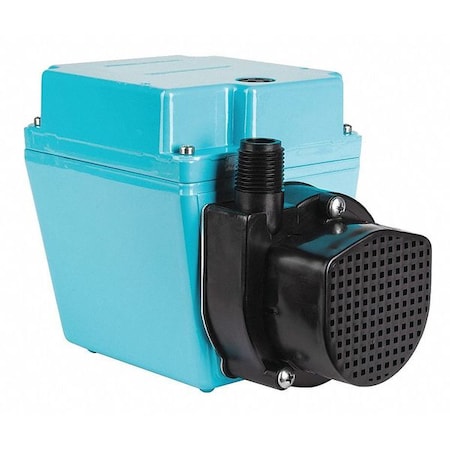

Little Giant Pump 504203 - Pump,7 In. L,4-1/2 In. W,5-1/2 In. H
Little Giant Pump 504203 - Pump,7 In. L,4-1/2 In. W,5-1/2 In. H
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The LITTLE GIANT PUMP 504203 is a compact submersible centrifugal pump for transferring or recirculating liquid in applications such as statuary fountains, water displays, air conditioners, and machine tool coolants. It has an oil-filled 1/12 hp motor, an epoxy-coated cast aluminum pump housing, and is designed for submersible use only. The pump delivers up to 810 GPH, reaches a maximum head of 24.5 ft, and is rated for intermittent liquid temperatures up to 120°F.
Key Features:
- Maximum flow rate: Up to 810 GPH at 1 ft of head.
- Flow performance: 745 GPH at 5 ft, 613 GPH at 10 ft, 400 GPH at 15 ft, and 173 GPH at 20 ft of head.
- Maximum head: 24.5 ft lift capacity.
- Discharge connection: 1/2 in (M)NPT outlet for compatible discharge piping.
- Inlet connection: 3/4 in (F)NPT inlet with screened inlet design.
- Motor sealing: Oil-filled motor for submersible operation.
- Overload protection: Thermal overload protection is included.
- Electrical: 115V AC, 60 Hz, 3.5 A operation.
- Construction: Epoxy-coated cast aluminum pump housing with nylon impeller.
- Size: 7 in L x 4.5 in W x 5.5 in H with a 6 ft cord.
- Duty: Continuous duty cycle.
- Listings: UL and cCSAus Listed.
