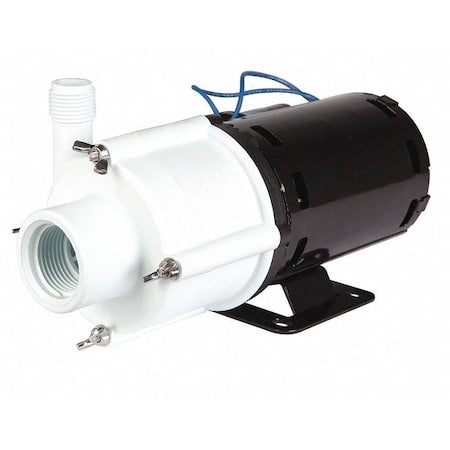

Little Giant Pump 582503 - 1/10 HP Polypropylene Magnetic Drive Pump 115 V 1" FPT

The LITTLE GIANT PUMP - 582503 is a magnetic drive centrifugal pump from the MD-SC Series for circulating semi-corrosive solutions in in-line, non-submersible applications. It is designed for mild chemicals at moderate temperature and uses a seal-less magnetic drive to eliminate seal-caused friction loss, wear, contamination, and leakage. The pump has a glass-filled polypropylene housing, volute, and impeller, along with a ceramic shaft and thrust washers, and it is configured for gravity-feed operation with the inlet positioned below the liquid level.

Key Features of the LITTLE GIANT PUMP - 582503:

• Magnetic drive design: Seal-less construction for circulating semi-corrosive liquids such as alkalis, acids, and solvents.
• Motor: 1/10 hp open fan cooled permanent split capacitor motor, 115V AC, single phase, 60 Hz.
• Flow and head: Up to 13.5 gpm with a maximum head of 24.3 ft.
• Port sizes: 1 in FNPT inlet and 1/2 in FPT outlet.
• Materials: Glass-filled polypropylene housing and impeller with ceramic shaft and thrust washers.
• O-ring/gasket material: Nitrile (Buna-N).
• Capacity limits: Maximum specific gravity 1.1 and maximum viscosity 100 SUS.
• Temperature limits: Maximum media temperature 150 degrees F and maximum ambient temperature 77 degrees F.
• Operating pressure: Maximum 10.5 psi.
• Installation: Horizontal mounting, in-line, non-submersible, gravity-feed design.
• Cord: 6 ft, 3-conductor SJP cord.
