Product Overview

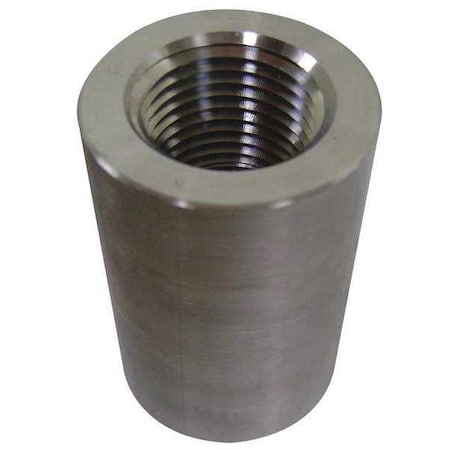

Constructed from 304 stainless steel. This coupling features a female threaded connection on one end (FSW) and a socket connection on the other, rated for a maximum operating pressure of 3000 psi at 100 degrees F. It meets LF2 ASME B16.11 and SA182 standards, and operates within a temperature range of -20 to 100 degrees F.
Features
- Pipe size: 1 inch on both connection ends.
- Connection types: Female socket weld (FSW) x Female national pipe thread (FNPT).
- Material: 304 stainless steel.
- Pressure rating: Class 3000 with a maximum pressure of 3000 psi at 100 degrees F.
- Overall length of 2 3/8 inches.
- Standards compliance: LF2 ASME B16.11 and SA182.
- Operating temperature range from -20 degrees to 100 degrees Fahrenheit.
- Thread pitch on threaded end: 11 1/2 TPI with NPT threading.
Technical Specifications
| Manufacturer Part Number | 2003006012 |
|---|
OEM Part Verification: Confirm part number 2003006012 against your equipment nameplate or parts list before ordering. Our order desk can cross-check it for you.
Order Desk Support: Call 850-565-3492 for formal quotes, lead times, and volume pricing.
