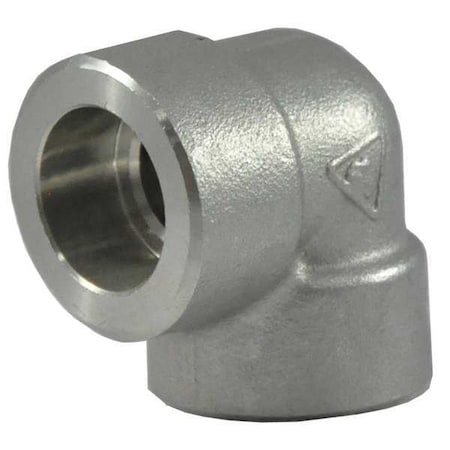

N/A 2UB25 - 1/2 in Socket Weld 90° Elbow, 316 Stainless Steel, Class 3000

The ZORO SELECT - 2UB25 is a 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes at a right angle, creating a 90° change in flow direction. It is constructed from 316 stainless steel and is rated for a maximum pressure of 3000 psi at 100°F and steam pressure of 2500 psi at 350°F. This fitting features socket weld connections on both ends, each sized for 1/2-inch nominal pipe and with 14 threads per inch on each end. The fitting complies with ASTM-A-182 and ASME B16.11 standards and is classified as Class 3000 for pressure rating. Key Features:

• - Pipe fitting material: 316 stainless steel.
• - Shape: 90 Degree Elbow designed for a right-angle flow change.
• - Connection type: Socket weld on both ends.
• - Nominal pipe size: 1/2 inch on both ends.
• - Pipe threading: 14 threads per inch on both ends.
• - Pressure rating: Class 3000, supporting up to 3000 psi at 100°F and 2500 psi steam pressure at 350°F.
• - Meets ASTM-A-182 and ASME B16.11 standards.
• - Does not include pre-applied thread sealant or seals.
