N/A 4381000200 - Flange, Stainless Steel, 3 1/2 in
N/A 4381000200 - Flange, Stainless Steel, 3 1/2 in
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

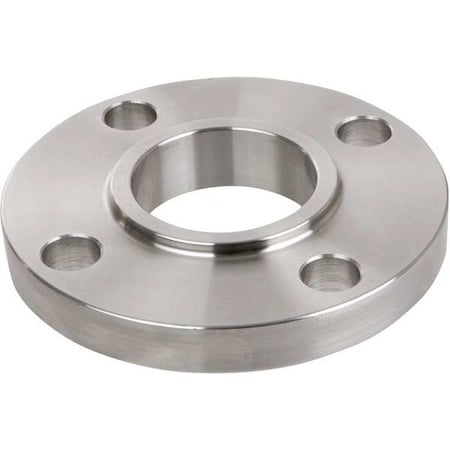

The ZORO SELECT - 4381000200 is a stainless steel pipe flange intended for use in pressure piping systems in accordance with industry standards. With a bolt circle diameter of 2 3/8 inches, bolt hole diameter of 5/8 inches, and four bolt holes, it provides a secure connection point. It meets the specifications of Class 150 pressure rating as defined by applicable standards and conforms to standards such as ASME B16.5. The flange features a 3 1/2 inch outside diameter and a flange thickness of 7/16 inches, made with 304/304L stainless steel, offering corrosion resistance as specified by material properties.
Key Features:
- - Bolt Circle Diameter: 2 3/8 in – measures the spacing between bolt holes, ensuring compatibility with mating parts.
- - Diameter of Bolt Holes: 5/8 in – specifies the size of the holes for bolts or studs.
- - Class: Meets the specifications of Class 150 pressure rating as defined by applicable standards.
- - Connection Surface: Lap Joint – describes the type of mating surface, offering standardized sealing capabilities.
- - Flange Outside Diameter: 3 1/2 in – the overall diameter of the flange, defining its size.
- - Flange Thickness: 7/16 in – the thickness of the flange, affecting strength and fitting.
- - Item: Pipe Flange – a flat or raised ring fitting used for pipe connections.
- - Material Grade: 304/304L Stainless Steel – the material offers corrosion resistance.
- - Nominal Pipe Size: 1/2 in – standard designation for pipe compatibility.
- - Number of Bolt Holes: 4 – total bolt holes used for securing the flange.
- - Pipe Fitting Material: Stainless Steel – primary material provides durability.
- - Standards: ASME B16.5 – compliance with recognized industry standards.
