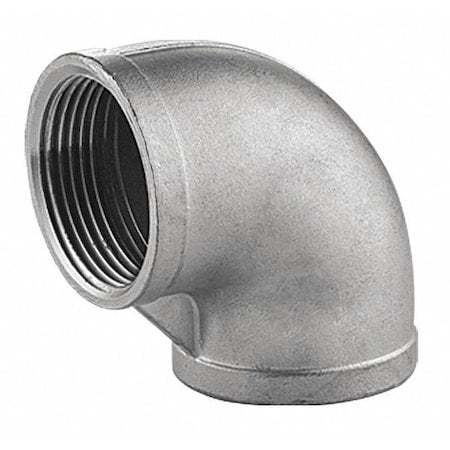

609E111N112 - 1-1/2" FNPT 316 SS 90 Degree Elbow

The ZORO SELECT - 609E111N112 is a 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes and create a right-angle (90°) direction change in flow. Constructed from 316 stainless steel. Material: 316 stainless steel; Maximum working pressure: 300 psi. The fitting features female NPT threaded connections on both ends, each sized at 1-1/2 inches nominal pipe size, and is compatible with pipe schedule 40. It complies with ANSI Standards B1.20.1 and Class 150 pressure ratings. This elbow fitting is suitable for conveying fluids including air, natural gas, non-potable water, oil, potable water, and steam. Key Features:

• - Material: 316 stainless steel
• - Pipe Size: 1-1/2" nominal size on both ends
• - Connection Type: Female NPT threaded connections on Side A and Side B
• - Pipe Thread Size: 11 threads per inch on both ends
• - Pressure Rating: Class 150, Maximum working pressure: 300 psi
• - Applications: Compatible with air, natural gas, non-potable water, oil, potable water, and steam
• - Color: Silver finish
• - Compliance: Low lead compliant for potable water use
• - Designed for pipe schedule 40
• - Standards: Meets ANSI Standards B1.20.1
• - Does not include pre-applied thread sealant or additional seals
