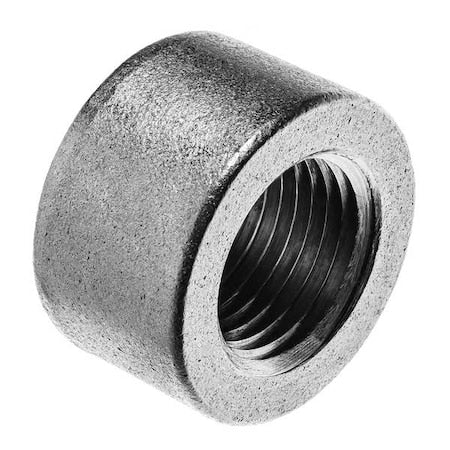

ZUSA-PF-7530 - SS,Straight,1"BSPTx1"Butt Weld

The ZORO SELECT - ZUSA-PF-7530 is a stainless steel Class 150 pipe fitting designed as a half coupling with a 1-inch nominal pipe size on both ends. It features a female BSPT threaded connection on Side A and a butt weld connection on Side B. Constructed of 316 stainless steel, this pipe fitting is rated for operation within the specified pressure-temperature ranges based on industry standards. The fitting is rated for maximum operating pressure of 150 psi according to manufacturer specifications. It is manufactured in accordance with ISO 7-1 threading standards.

Key Features:

• - Material: 316 stainless steel for corrosion resistance and durability.
• - Pressure Class: Class 150, rated for maximum operating pressure of 150 psi.
• - Application Range: designed for use with air, natural gas, oil, potable water, and steam within specified parameters.
• - Connections: Side A is female BSPT threaded (11 TPI); Side B is butt weld type.
• - Nominal Pipe Size: 1 inch on both fitting ends.
• - Overall Length: 21 mm, suitable for space-restricted installations as a half coupling.
• - Standards: manufactured in accordance with ISO 7-1 threading standards.
