Product Overview

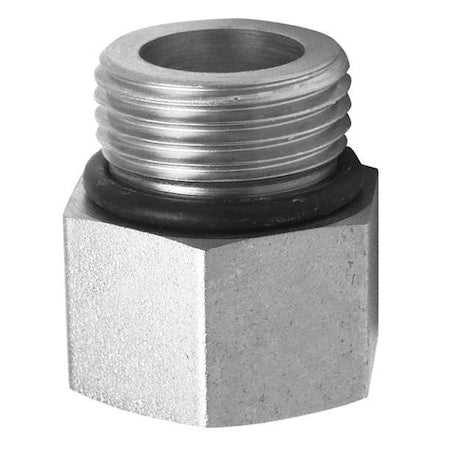

The PARKER - 24-1 1/2 F5OG-SS is a stainless steel pipe adapter rated for connection between components with differing connection types or sizes. It features a male SAE-ORB connection on one end and a female NPT connection on the other, accommodating pipe sizes of 1 7/8 inches and 1 1/2 inches respectively. Constructed from 316 stainless steel and including a nitrile seal; suitable for hydraulic fluid systems according to specified parameters. The fitting conforms to SAE J1926-1 and SAE J514 standards and functions within the specified temperature range of 30°F to 250°F.
Features
- Material Grade: 316 Stainless Steel
- Connection Types: SAE-ORB (Male) x FNPT (Female)
- Nominal Pipe Sizes: 1 7/8 in (Side A), 1 1/2 in (Side B)
- Maximum Operating Pressure: 2,400 psi
- Seal Material: Nitrile included
- Overall Length: 2 in
- Hex Size for Wrenching: 2-1/4 in across flats
- Color: Silver
Technical Specifications
| Brand | Parker |
|---|---|
| Manufacturer Part Number | 24-1 1/2 F5OG-SS |
OEM Part Verification: Confirm Parker part number 24-1 1/2 F5OG-SS against your equipment nameplate or parts list before ordering. Our order desk can cross-check it for you.
