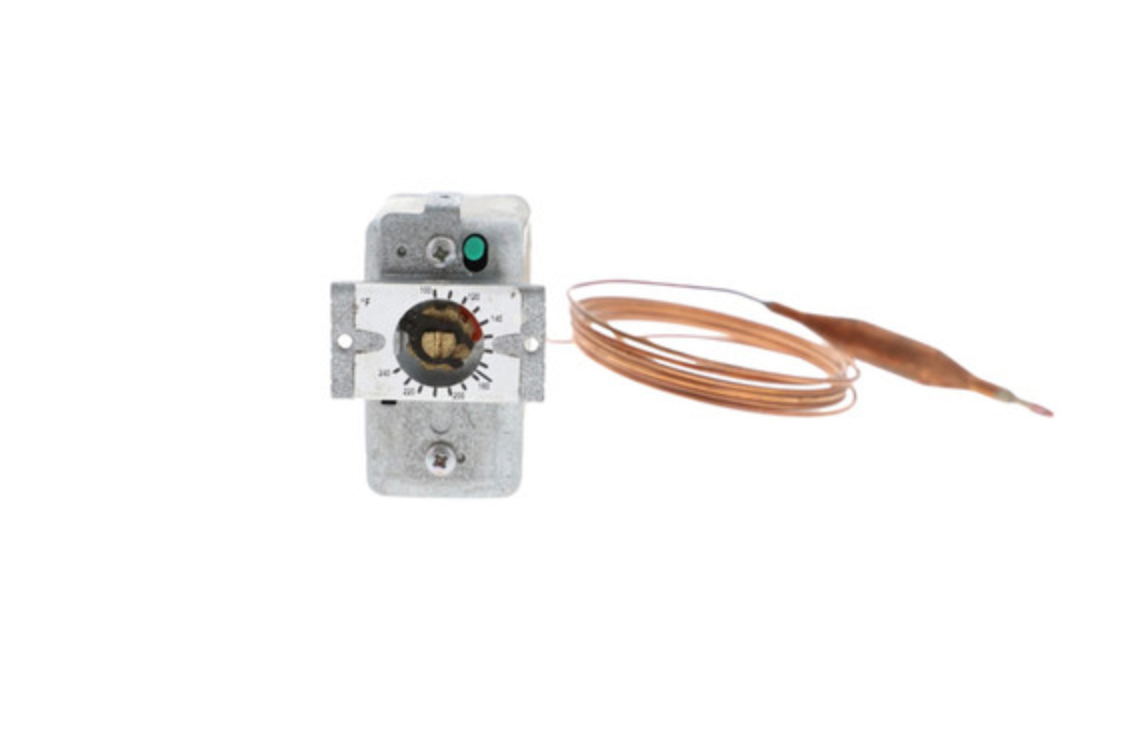

Patterson-Kelley High Limit Temperature Switch - 2650000189
Patterson-Kelley High Limit Temperature Switch - 2650000189
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Patterson-Kelley 2650000189 High Limit Temperature Switch is an essential safety control mechanism engineered for heavy-duty commercial and industrial boilers. Functioning as a fail-safe defensive sentinel, this switch continuously monitors internal heat engine and water-jacket temperatures. If the system experiences a primary thermostat failure or runaway thermal climb that exceeds pre-calibrated factory safety parameters, this device instantly breaks the electrical control loop to safely shut down combustion before equipment damage or excessive system pressures occur.
Advanced Safety & Mechanical Safeguards:
- Strict Manual Reset Safety Logic: Features a positive mechanical manual reset button. Following a high-temperature safety trip, the switch locks out permanently and cannot be bypassed by cycling the power, forcing a licensed HVAC technician to inspect and resolve the root heating failure.
- Premium Capillary Thermal Sensing: Utilizing a rugged liquid-filled sensing bulb and a flexible armored capillary tube, it responds rapidly to sharp fluid temperature spikes, ensuring accurate thermal tracking without micro-amp signaling lag.
- Direct OEM Factory Integration: Specifically designed to align with Patterson-Kelley's strict safety standards, keeping commercial boilers compliant with ASME CSD-1 code requirements.
System Application Note: Universally compatible across select high-efficiency condensing and non-condensing commercial boiler architectures, including premium P-K MACH®, SONIC®, and STORM® configurations.
| Technical Metric | Operational Threshold Data |
|---|---|
| Manufacturer Part Number | 2650000189 |
| Component Type | High Limit Aquastat / Safety Cut-Out Switch |
| Reset Functionality | Manual Mechanical Reset Button (Lockout Protected) |
| Sensing Mechanism | Liquid-Filled Copper Sensing Bulb & Capillary Tube |
| Electrical Contact Rating | Heavy-Duty Low Voltage / Line Voltage Control Circuit Compatible |
| Contact Configuration | SPST (Normally Closed, Opens on Temperature Rise) |
| Code Compliance Standards | ASME CSD-1 Factory Certified Component |
