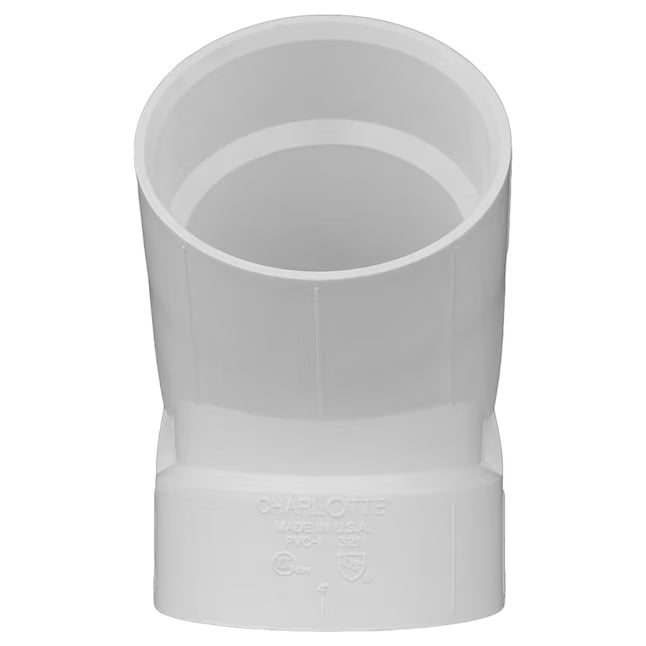

PVC DWV 45-Degree Sanitary Elbow (Hub x Hub)
Engineered to smoothly alter the path of gravity-fed drainage lines, our PVC DWV 45-Degree Sanitary Elbow (1/8 Bend) introduces an optimal directional shift while eliminating the internal turbulence and debris catchment zones common with sharper pressure angles. This professional-grade fitting provides the gradual directional sweep required by modern mechanical plumbing codes to ensure optimal, free-flowing wastewater transit.
Injection-molded from robust, virgin polyvinyl chloride compounds conforming to ASTM D2661 and ASTM F891 tolerances, these angled fittings are completely immune to aggressive atmospheric sewer gases, electrochemical deterioration, and scale accumulation.
Key System Performance Baselines:
- Application Profile: Specifically designed for directional transitions in non-pressure, gravity-fed drainage, waste, and vent stack networks.
- Gradual Flow Path: 45-degree angle profile allows for gradual direction shifts to mitigate blocking hazards and preserve constant line venting.
- Connection Style: Hub x Hub (Socket x Socket) configuration designed for precise, secure, and permanent solvent-welded joints.
- Material Verification: Manufactured from lead-free rigid PVC compound certified to NSF Standard 14 for dimensional exactness.
⚠️ Engineering Disclaimer: This plumbing component is explicitly engineered for gravity-driven drainage applications. NEVER subject this 45-degree DWV elbow to pneumatic or hydrostatic pressure sequences, as it is completely unrated for compressed air or pressurized liquid service.
| Nominal Connection Size | Hub Inner Diameter (ID) | Minimum Wall Thickness | Center-to-Hub Distance | Industry Specifications |
|---|---|---|---|---|
| 1/2" | 0.840" | 0.109" | 0.50" | ASTM D2661 / NSF 14 |
| 3/4" | 1.050" | 0.113" | 0.62" | ASTM D2661 / NSF 14 |
| 1" | 1.315" | 0.133" | 0.75" | ASTM D2661 / NSF 14 |
| 1-1/4" | 1.660" | 0.140" | 1.00" | ASTM D2661 / NSF 14 |
| 1-1/2" | 1.900" | 0.145" | 1.18" | ASTM D2661 / NSF 14 |
| 2" | 2.375" | 0.154" | 1.50" | ASTM D2661 / NSF 14 |
| 2-1/2" | 2.875" | 0.203" | 1.75" | ASTM D2661 / NSF 14 |
| 3" | 3.500" | 0.216" | 2.18" | ASTM D2661 / NSF 14 |
| 4" | 4.500" | 0.237" | 2.87" | ASTM D2661 / NSF 14 |
