PVC DWV Drainage Pipe
PVC DWV Drainage Pipe
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Nominal Pipe Size | Average Outer Diameter (OD) | Minimum Wall Thickness | Pressure Rating | Industry Specifications |
|---|---|---|---|---|
| 1/2" | 0.840" | 0.109" | 0 PSI (Non-Pressure Only) | ASTM D2661 / NSF 14 |
| 3/4" | 1.050" | 0.113" | 0 PSI (Non-Pressure Only) | ASTM D2661 / NSF 14 |
| 1" | 1.315" | 0.133" | 0 PSI (Non-Pressure Only) | ASTM D2661 / NSF 14 |
| 1-1/4" | 1.660" | 0.140" | 0 PSI (Non-Pressure Only) | ASTM D2661 / NSF 14 |
| 1-1/2" | 1.900" | 0.145" | 0 PSI (Non-Pressure Only) | ASTM D2661 / NSF 14 |
| 2" | 2.375" | 0.154" | 0 PSI (Non-Pressure Only) | ASTM D2661 / NSF 14 |
| 2-1/2" | 2.875" | 0.203" | 0 PSI (Non-Pressure Only) | ASTM D2661 / NSF 14 |
| 3" | 3.500" | 0.216" | 0 PSI (Non-Pressure Only) | ASTM D2661 / NSF 14 |
| 4" | 4.500" | 0.237" | 0 PSI (Non-Pressure Only) | ASTM D2661 / NSF 14 |
Couldn't load pickup availability

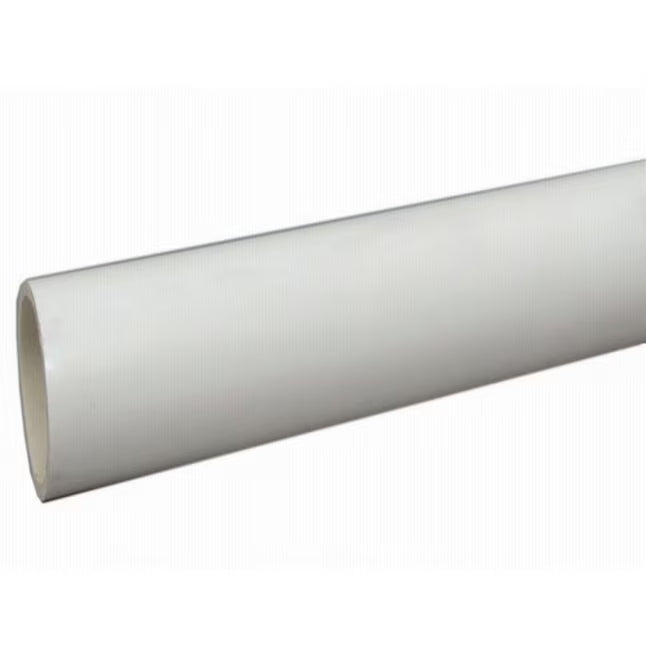

PVC DWV Drainage Pipe (Rigid Lengths)
Engineered strictly for gravity-fed residential, commercial, and industrial waste management infrastructure, our PVC DWV Drainage Pipe provides superior structural strength and performance for non-pressure networks. Optimized for drain, waste, and vent stack designs, this pipe features a mirror-smooth internal bore that maximizes laminar flow, virtually eliminates waste adhesion, and resists aggressive scale accumulation.
Extruded from high-grade virgin polyvinyl chloride compounds meeting ASTM D2661 or co-extruded cellular core standards meeting ASTM F891, this piping line is completely immune to underground galvanic corrosion, highly aggressive sewer gases, and typical chemical drain cleaning agents.
Key System Performance Baselines:
- Application Profile: Engineered exclusively for gravity-driven drain, waste, and vent applications.
- Corrosion Resistance: Completely unaffected by sewer gases, acidic soils, or electrolytic corrosion.
- Smooth Bore Finish: High flow coefficient minimizes frictional drag and reduces building code clogging hazards.
- Jointing Compatibility: Straight plain-end design allows for seamless cutting, deburring, and high-strength solvent welding with standard DWV hubs.
- Trade Compliance: Certified to NSF Standard 14 to meet structural and dimensional plumbing inspector code rules.
⚠️ Engineering Disclaimer: Polyvinyl chloride DWV pipelines are strictly rated for non-pressure applications. NEVER test, purge, or operate this piping system using compressed air or high-pressure gases. Compressed gas testing voids compliance and presents a dangerous structural rupture hazard.
