National Boiler Supply supplies the Qmark WHT500 Surface-Mount Pump House Heater to contractors, facility teams, and purchasing departments. Get fast dispatch, contractor-ready quotes, and order desk support at 850-565-3492.
Product Overview

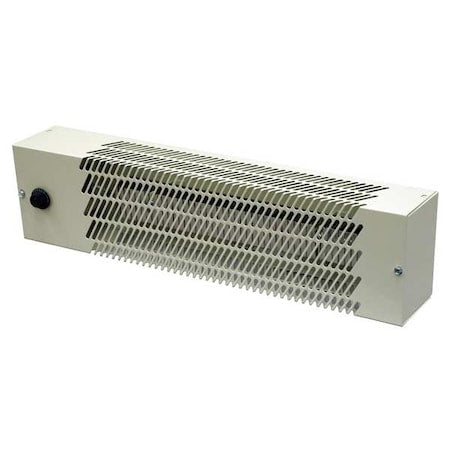

The QMARK WHT500 is a surface-mount pump house heater designed to help protect pipes, pumps, and other water, hydraulic fluid, or oil-filled equipment from freezing in spaces such as well houses, utility rooms, relay stations, pipe rooms, and basements. This convection heater uses a steel sheath, aluminum finned element and features a unit-mounted mechanical selector dial thermostat with a temperature control range of 40 to 70°F. It is shipped wired for 240/208V and can be field converted to 120V. Key Features of the QMARK WHT500 Surface-Mount Pump House Heater:.
Features
- Heating Output: Provides 500W/375W/500W with a heating capacity of 1706/1284/1706 BtuH depending on voltage.
- Voltage: Operates on 120/208/240V AC, 1-phase, 60 Hz power.
- Thermostat: Unit-mounted thermostat with a mechanical selector dial allows temperature adjustment from 40 to 70°F.
- Heating Method: Convection heating with no moving parts.
- Construction: Steel housing with epoxy painted galvanized finish and a steel grille.
- Mounting: Surface-mount design for installation where localized freeze protection is needed.
- Size: Overall dimensions are 21 in W x 5 in H x 3-1/2 in D.
- Wiring Design: Power supply and control wiring terminate in the tamperproof control box; the thermostat is contained within the control box.
Technical Specifications
| Brand | Qmark |
|---|---|
| Manufacturer Part Number | WHT500 |
OEM Part Verification: Confirm Qmark part number WHT500 against your equipment nameplate or parts list before ordering. Our order desk can cross-check it for you.
Order Desk Support: Call 850-565-3492 for formal quotes, lead times, and volume pricing.
