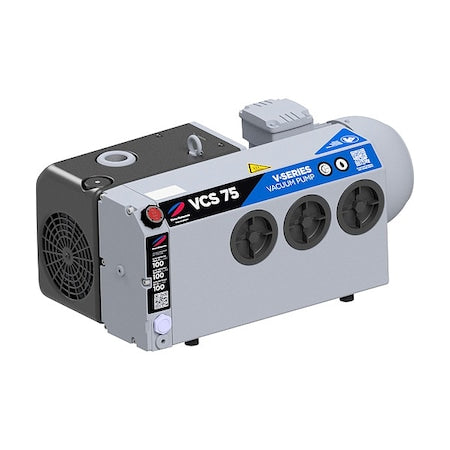

Rietschle Thomas VC-75 - Vacuum Pump,3 hp,3 Phase,208-230/460 V AC
Rietschle Thomas VC-75 - Vacuum Pump,3 hp,3 Phase,208-230/460 V AC
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
This Rietschle Thomas vacuum pump is rated at 3 hp output power, running on 208-230/460V AC, three-phase, with a current rating of 6.9/4.0 A and 8.4/4.2 A depending on voltage. Frequency is 50/60 Hz, with a maximum speed of 1,450 RPM or 1,740 RPM. Maximum flow rate is 49.4 cfm, and maximum vacuum is rated at 0.1 mbar (29.91 in Hg maximum operating pressure). The pump has a 1-1/4 in NPT inlet and a 1-1/4 in FBSP outlet, with an oil capacity of 96 oz and a fine mesh filter. It includes a filter, oil, oil separator, and vacuum non-return valve. The motor is TEFC continuous duty, with a gas ballast valve type. Sound level is rated at 64 dBA and 68 dBA (max. 68 dBA). Operating temperature range is 12°C to 40°C. The housing has a painted finish, and the unit is certified to EN 1012-2:1996+A1:2009 standards. Country of origin is Germany. Overall dimensions are 27.68 in L x 13.12 in W x 10.5 in H. Specifications Output Power: 3 hp | Voltage: 208-230/460V AC | Phase: Three | Frequency: 50/60 Hz Current Rating: 6.9/4.0 A, 8.4/4.2 A Maximum Flow Rate: 49.4 cfm | Maximum Speed: 1,450 RPM, 1,740 RPM Maximum Vacuum: 0.1 mbar | Maximum Operating Pressure: 29.91 in Hg Inlet: 1-1/4 in NPT | Outlet: 1-1/4 in FBSP Oil Capacity: 96 oz | Filter Type: Fine Mesh | Fluid Compatibility: Oil | Runs Dry: No Motor Type: TEFC Continuous Duty | Valve Type: Gas Ballast Sound Level: 64 dBA, 68 dBA (max. 68 dBA) Operating Temp Range: 12°C to 40°C Finish: Paint | Standards: EN 1012-2:1996+A1:2009 Country of Origin: Germany Dimensions: 27.68 in L x 13.12 in W x 10.5 in H
