Schedule 40 PVC Socket Tee
Schedule 40 PVC Socket Tee
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Nominal Connection Size | Socket Inner Diameter (ID) | Minimum Wall Thickness | Max Working Pressure at 73°F (23°C) | Industry Specifications |
|---|---|---|---|---|
| 1/2" | 0.840" | 0.109" | 600 PSI | ASTM D2466 / NSF 61 |
| 3/4" | 1.050" | 0.113" | 480 PSI | ASTM D2466 / NSF 61 |
| 1" | 1.315" | 0.133" | 450 PSI | ASTM D2466 / NSF 61 |
| 1-1/4" | 1.660" | 0.140" | 370 PSI | ASTM D2466 / NSF 61 |
| 1-1/2" | 1.900" | 0.145" | 330 PSI | ASTM D2466 / NSF 61 |
| 2" | 2.375" | 0.154" | 280 PSI | ASTM D2466 / NSF 61 |
| 2-1/2" | 2.875" | 0.203" | 300 PSI | ASTM D2466 / NSF 61 |
| 3" | 3.500" | 0.216" | 260 PSI | ASTM D2466 / NSF 61 |
| 4" | 4.500" | 0.237" | 220 PSI | ASTM D2466 / NSF 61 |
Couldn't load pickup availability

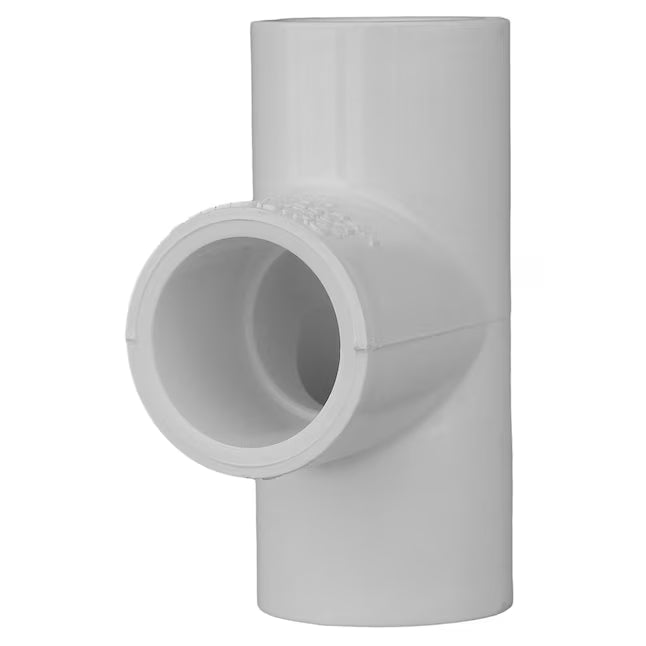

Schedule 40 PVC Socket Tee (Slip x Slip x Slip)
Engineered to facilitate clean 90-degree branch plumbing lines in high-velocity fluid handling systems, our Schedule 40 PVC Socket Tee provides exceptional structural rigidity and pressure handling. This directional component features three straight slip sockets (Hub x Hub x Hub) precision-machined to distribute cold-water fluid media seamlessly across industrial process setups, commercial chilled water loops, and potable main lines.
Injection-molded from robust, premium-grade virgin polyvinyl chloride compounds conforming to ASTM D1785 and ASTM D2466 standards, this socket tee delivers optimal wall thickness to resist high physical impact, chemical breakdown, and scale accumulation.
Key System Performance Baselines:
- Application Profile: Rated for high-performance cold-water pressure applications, water service, and chilled process pipelines.
- Engineered Flow Design: Precision internal branch alignment maximizes flow consistency across 90-degree splits while keeping friction losses low.
- Connection Type: Socket x Socket x Socket (Slip x Slip x Slip) configurations designed for uniform, leak-free solvent welding.
- Trade Compliance: Manufactured from lead-free rigid compound certified to NSF/ANSI Standard 14 and Standard 61 for potable fluid distribution.
⚠️ Engineering Disclaimer: Schedule 40 pressure fittings are strictly engineered for liquid transportation. NEVER subject this PVC socket tee to pneumatic testing, compressed air, or highly pressurized gas lines. Compressed gas testing creates a high-impact fracture risk and immediately voids mechanical compliance.
